Tutorial: How to use Pepakura Designer software

Publié le : (Mis à jour le : ) Tags : ,

The purpose of this tutorial is to teach you the basics of Pepakura Designer, a papercraft software.

Let’s start with a short presentation:
Tama Software offers a small range of Pepakura softwares intended for papercrafts creation. Among these softwares may be found:

  • Pepakura Viewer, a free software that allows to view and print premade papercrafts,
  • Pepakura Designer, a paid software ($38), that allows to create papercrafts from 3D models.

In this tutorial, we will talk about Pepakura Designer. If you don’t want to pay for it, the trial version offers you the same functionalities as the commercial one, except for the saving and exporting files options.

You can download these softwares here: www.tamasoft.co.jp/pepakura-en



1. Preparing / Finding a 3D model

Please note that Pepakura Designer is NOT a 3D creation software. It means that you won’t be able to create a papercraft directly from this software. You will have to import a 3D model and then transform it into paper patterns.

To make the object of your dreams, different options are possible :

  • The Ideal Path: Someone already prepared a .pdo file (Pepakura file) and shared it for free (or not) on the internet. In this case, JACKPOT! You can directly print / cut / glue / pull your hair out / show off. Small tip: To find the Holy Grail, search for “<name of the object> .pdo” with Google.
  • Using an existing 3D model: If you didn’t find a premade Pepakura file, you will have to search for a 3D model of your object on the internet and prepare it. Mostly, you will find .obj files that can be imported in Pepakura Designer (a list of supported file formats is available on Tamasoftware’s website). There are a lot of websites providing free 3D files. You should find what you are looking for quite easily. Once your file is imported, you will have to transform it into a pattern (see the following steps).
  • Creating a 3D model: If you’re not familiar with 3D creation softwares… brace yourself. I personally use 3Ds max, but you can find a free alternative called ‘Blender’. There is a bunch of tutos on the internet if you want to try CAD design. It is a loooong learning curve but if you are motivated, you will finally be able to create nearly everything you want to. Good luck 😉



2. User interface

When opening Pepakura Designer, the screen displays:

Pepakura Interface
Beautifull huh ? 😉
  1. Use the toolbar to edit your 3D object or your 2D pattern.
  2. In this 3D model area, you can view your object and move it in all axes.
  3. This is the area where your object will be displayed in a pattern version (flat). It depends on the final object size, but generally you will have more than a simple A4 paper. 😉



3. “Unfolding” a 3D model

To start: open your file (.pdo, .obj, etc.) by clicking on “File” > “Open”.

Print and paper settings Pepakura

IMPORTANT: check that the paper size is set to A4 (or any other format available in your printer). There is nothing more frustrating than preparing a good pattern and having to start all over again because of a wrong paper size…

Click on “File” > “Print and Paper Settings…” and set the “Paper size” on A4. Check “Print lines clearly” (folding lines will be cleaner when printing). Button Unflod PepakuraThe unfold button allows you to transform your 3D model automatically into a printable and foldable pattern.



When you click on this button, the pattern of your 3D model appears in the right area. The software will adjust the pattern to an A4 size by default, which might reduce the model under its original size.

Left: model shrinked on one A4 sheet / Right: real size model ( spread over twenty sheets)
Left: model shrinked on one A4 sheet / Right: real size model ( spread over twenty sheets)



Tuto-Pepakura-Change scale

To correct the size of your object, go to “2D Menu” > “Change Scale” > “Scale Factor”. In this window, enter the final dimensions of your object: height, width, depth (beware, these are displayed in millimeters). Tip : if your 3D model has already the correct dimensions straight from the beginning, try to change the scale factor by 1 or 10. Most of the time, you will obtain the initial size of your object.



Once your model is correctly scaled, you should have an epic mess in the right area… Indeed, the software spreads the pieces of your papercraft on several A4 sheets. Let’s start with the cleaning work!
With a good cleaning, you can save time and paper, so don’t underestimate this step.

First, adjust the size of the flaps: click on “Edit Flaps” tool, check “Change Shape” and enter the height of your flaps in millimeters (5mm is quite good).
Pepakura Edit Flaps



Pepakura edit flaps

Pepakura change flaps size

The result should already be more readable

Next step: cut the pattern in more logical pieces. For this purpose, use “Divide/Connect Faces” tool: hover the fold you want to cut/connect, click and that’s it.
Pepakura Divide

Pepakura Divide
Green = you divide

Pepakura Connect
Red = you connect



Try to make symmetrical pieces and bring the small elements together to avoid gluing pieces that are to tiny and difficult to assemble.

Pepakura Select and Rotate
Now that your pieces are done, use “Select and move” and “Rotate part” tools to better align the pieces on the sheets. Group them and save place by putting small pieces in the blanks between bigger parts.

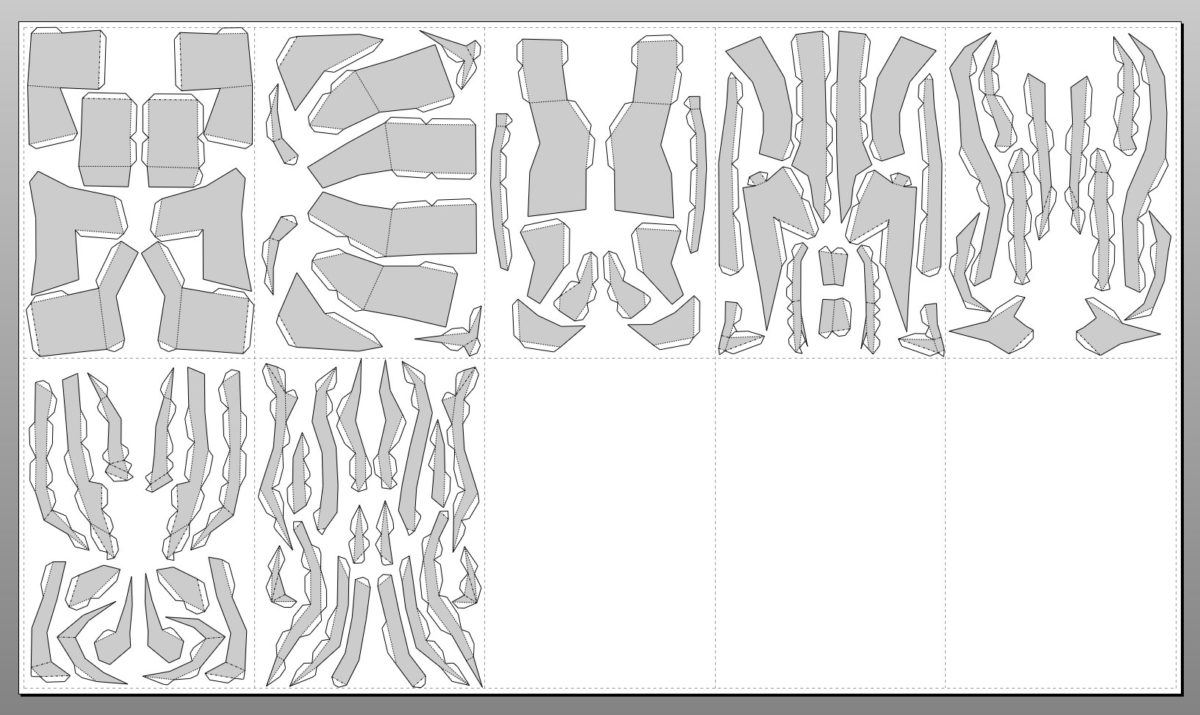

A nice clean file :)
A nice clean file 🙂

4. Printing

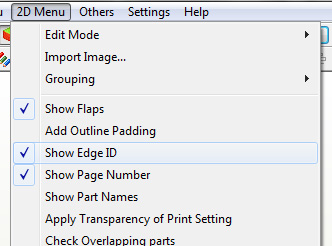

We’re nearly done! Last setting but not least: by default, Pepakura prints your pattern without the small numbers that are however necessary to know which piece comes with another. Go to “2D Menu” and check “Show Edge ID” to display them.

Pepakura Show Edge Id
Pepakura Show edge ID

Do the same for the page numbers (this is useful if you want to be sure you have all the sheets printed before you start cutting them). Go to “2D Menu” and click on “Show Page Number”.

Your Pepakura should be ready for printing, go to “File” > “Print”, select your favorite printer, click on OK and let’s go! 🙂



BONUS :

In addition, here is a checklist before you print your Pepakura, and a few tips about the software.

Checklist  before printing:

– Paper size set on A4
– Object dimensions (“2D Menu” > “Change Scale”)
– Flap numbers (“Show edge ID” checked in “2D Menu”)
– Page numbers (“Show page ID” checked in “2D Menu”)
– Flaps size (“2D Menu” > “Edit Mode” > “Edit Flaps”)
– Paper and ink in your printer (obviously…)



Tips :



Adding a texture

You can add a texture to your object, whether to use it as a final object if you only want to build a papercraft or to guide you when assembling the Pepakura.

How to :
First of all, you need a texture. Most of the time, the texture is provided with the 3D file you download. It is an image (.jpg, .png, .tgz…) where everything seems flat. Go to “Settings” > “Texture Settings”, then click on “Specify texture image”. Select your texture, click OK and look at the result!

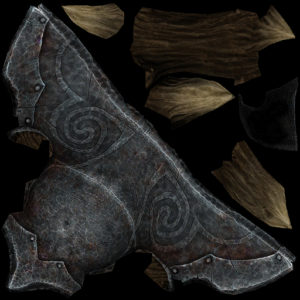

Texture helmet

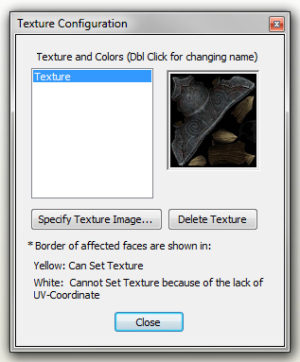

Pepakura Textutre Settings

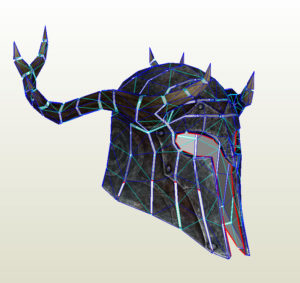

Helmet textured



Smoothing edges

When you craft an object with Pepakura, the result is often cubic, with sharp edges. You can soften this effect with a simple operation on Pepakura Designer. Beware, this method doesn’t change your 3D object. The result may vary widely depending on the case, and sometimes your Pepakura would be too difficult to assemble in the end. It is therefore to be used with caution.

The concept is simple: the software hides some edges from a certain folding degree. Pepakura shows every edge whose angle is lower or equal to 175° by default.
When you change this setting to show less edges, the result is smoother.
Click on “Settings” > “Other settings” and change the “Threshold” value. Adjust as you need it.

Pepakura Setting



That’s all folks!

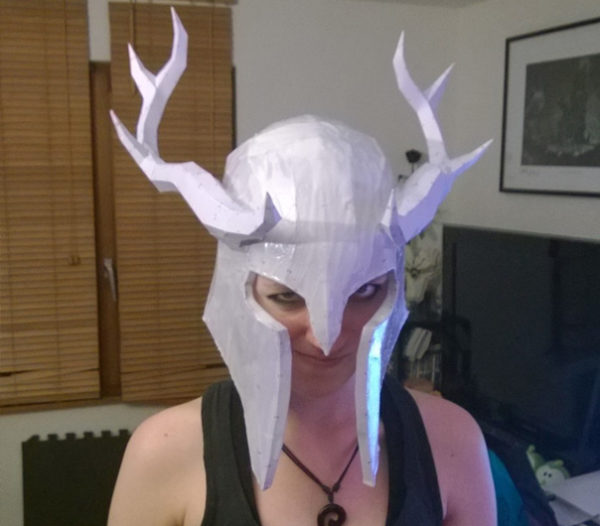

All you have to do now is to cut/fold/glue everything…
Don’t hesitate to ask questions by leaving a comment! 🙂

Pepakura finished with resin
Pepakura finished with resin

Plastiline on Pepakura
Plastiline on Pepakura

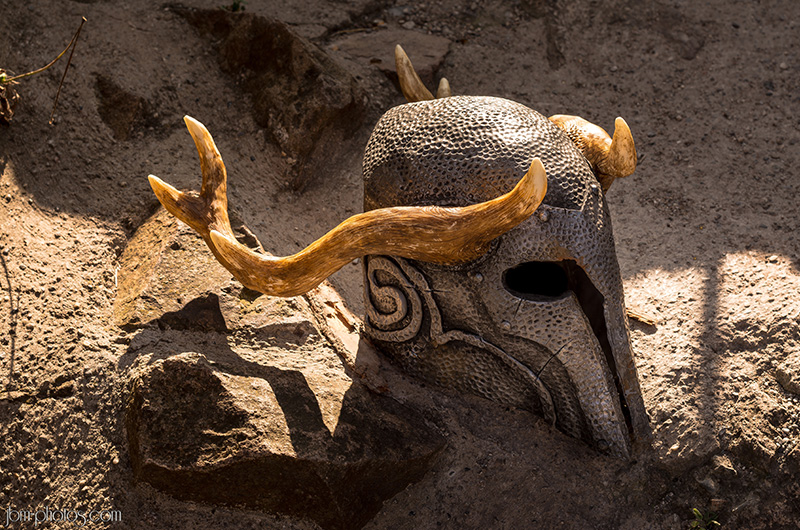

Pepakura painted
Helmet painted! Photo : Jbm-photos



Mis à jour le :

The content of our website is free and accessible to all, do not hesitate to make a small donation to support us if this article was useful to you!

Share: Facbook Deviantart Google + Pinterest Reddit
mael@blackowlstudio.com

Mael Alos, 26 ans est Webdesigner/Webmaster freelance. Il est fan de jeux-videos et de SF, ses spécialités sont le Worbla, la résine et le silicone.

2 Comments :

  1. Custom avatar

    Nice tutorial there. Do Plastiline is enough to replace fiberglass mating, bondo filler for a painted helmet that you wear in a con? When you use it on an helmet, it’s a resined helmet before right?

    • Black Owl Studio

      So there might be a misunderstanding here, let me clear this up.

      When the pepakura is assembled, we brush a thin epoxy layer on the surface so it stays in place and doesn’t wrap/bend/get destroyed.

      On top of this newly rigid surface, we put plastiline and sculpt the shape we want.

      What is not explained in this tutorial (because it is beyond it’s scope), is that we then use silicon to make a mold of this platiline shape, and then pour resin into the mold to get an exact copy of the plastinine shape, but is resin. This process explains it all

      Plastiline can not be used as a replacement for resin/bondo/any casting material. It is a sculpting material that is not supposed to be used on a finished product because it just won’t stay in place. Any heat and any scratch will destroy your work ;).
