Tutorial : Crafting articulated wings

Publié le : (Mis à jour le : ) Tags : , ,

Define the need

To build my Guardian of Kings costume, I HAD to have wings; and for good measure, they HAD to open.

The biggest challenge was to give a “Woah” effect to the costume, like a peacock showing off his plumage. To achieve that, the motion of the mechanism imitates a real eagle wing, which looks pretty close to what people picture in their head when they think about angel wings.

I had the choice to automate the wings so they would open with a remote trigger or create a system to open them by hand.

Automated systems

For automated systems, there were two possibilities: use electrical motors or a pneumatic system.

Electrical motors allow for total control over the speed of the wings as well as different angles while opening the wings to give a natural feeling of a bird movement.

The main drawback of this solution is the combined weight of motors, batteries and all the steel elements used in the system. If the wings were the only prop on the costume it would have been okay-ish, but if you add to this a full armor and a sword, it becomes a bit too heavy to wear.

The pneumatic system on the other hand allows for a quick opening of the wings. The portability and autonomy of the system are rather good. But the required pieces were hard to find, so they would not have been cheap for me. Additionally I had my doubts that the security checks would let me through while I had air tanks attached to my waist.

Because no automatic solution was good enough, I went to see what was possible on the side of manual systems.

Manual systems

I quickly realized that with a manual system, all you need is figure out one thing: which one of your joints will power up your great invention!

Generally the most practical solution is to use an arm, preferably a free one. Of course it would be possible to use a leg, a foot, your neck and so on, but that would be looking for trouble!

In my case, I wanted a length of course small enough so I didn’t have to move my arm too far to open the wings. For this, I drew an unfolding mechanism and attached a cord and pulleys to it. And there I have to be honest and admit that I got very lucky: the course was almost perfectly right at the first try :p .

Research, drawings and prototypes

Before building our wing, we have to figure out what we’re building.

In the beginning, a pivot/slide system seemed like a good solution, but the practical build of this would have been quite the difficult task. To be sure not to mess up, I cut some cardboard pieces and put them together with metal wire.

cardboard pattern

I then tried a system with pieces put end-to-end, maintained parallel by doubling the middle piece.

cardboard wing

The movement is limited but good enough.

The best would have been a secondary course angle for the back and forth, but it was too complicated to implement. So I let the movement free and put simple minimum-maximum stops to set the course (see further below).

I then looked for a way to attach the feathers. There really is an infinity of possibilities there. The one that seemed the most practical the also the most common is using a wire connecting all the feather of a same row, that will let you set precisely the angle between each of them when the wing is open (visible on Mashayahana’s tutorial photo on DeviantArt).

Mashayahana ailes
Credits : Mashayahana – http://mashayahana.deviantart.com/

So when the wing is at rest, the wire is not stretched and the feathers just drop naturally toward the floor. When the mechanism is activated, the first feather, tightly fixed to the structure will pull the wire, which will then pull on the second feather, which will then pull on the next and so on until all the feathers of the row are unfolded.

wing sketch

Another question was the back fixation. The most obvious solution were using a harness, or a backpack. In the end I chose a backpack that I almost turned into a harness…

The last problematic was finding a good material for the feathers, and how to make them. Once again, a lot of possibilities, from fabric to foam, even real feathers. But the price fluctuated a lot between each of them…

I went for the “foam, wood, wire, glue” solution to get a feather that is flexible and light. The painting was a bit harder to figure out because of said flexibility, but we got pretty good results using “Dip”, a flexible and waterproof paint.

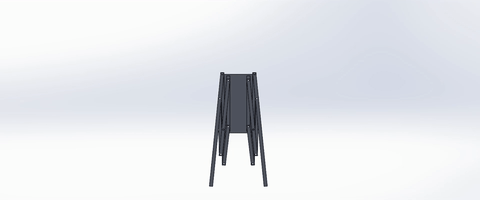

To figure out the length of each feather, I drew a prototype on SolidWorks in an articulated assembly. I proved quite hard to set all the lengths right so that the wings would fold back on themselves nicely and still have a good look when they were open.

wing sketch



Prototypes

The first prototype was made out of bamboo. I thought it was light, and robust enough to hold all the feathers, but it turned out to be brittle and not very durable.

prototype bambou

It was still useful. It confirmed that the general mechanism was good. And that with some adjustments to the length of the wood pieces, the feel was the right one.

For the backpack, it was initially supposed to keep the “carry objects” function, but when the costume was on, the width of the backpack made me look crooked and kinda weird. So we removed the extra width, and just cut pretty much all the pockets, since they were just useless in the end.

sac a dos ailes
sac a dos ailes

Building

List of necessary materials:

  • 1x Bag
  • 4m of wood (4×4 in my case). Can be replaced by plexiglas for exemple
  • 1x thin plywood plank (~5mm) for the dorsal plate
  • 2x large joint rings with 6mm internal diameter
  • 1x large joint ring with a big internal diameter
  • 20x bolts or screws 6mm
  • 20x self locked nuts 6mm
  • 20x 6mm joint rings
  • 3x small pulleys
  • 40x “closed” pitons
  • 2x wood screws (small)
  • 2x small screwable plastic stops
  • Very durable string
  • Hot glue

Tools

  • Hot glue gun
  • Drill (pillar drill prefered)
  • 6mm spanners
  • A large screwdriver
  • A metal saw

Bag

The bag was bought at a sports shop for 10€. It is basic but efficient because the straps are padded and comfortable for the shoulders, and it has two straps on the front for stabilization, which is very practical.

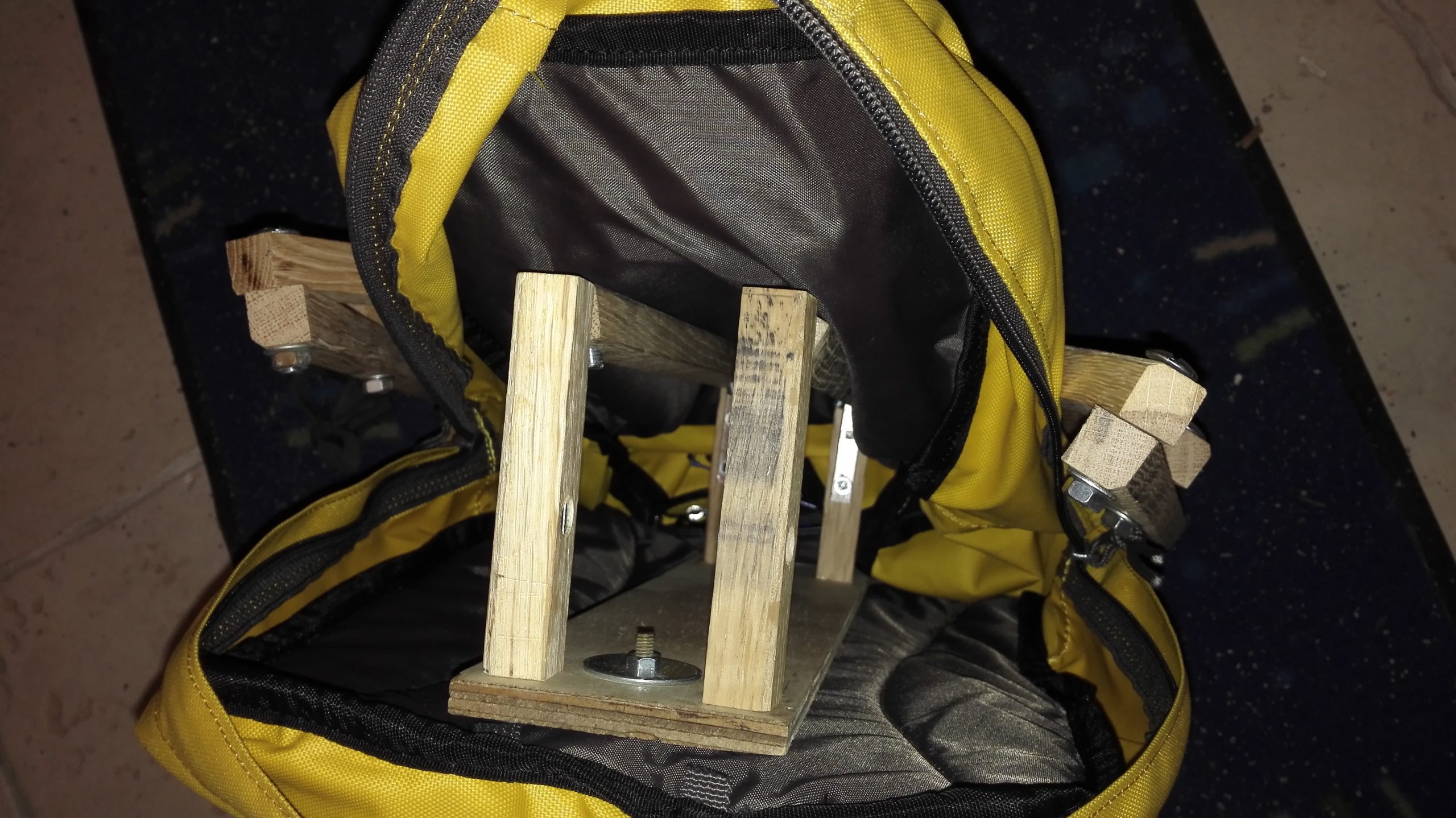

A wooden plank the same height as the bag’s is attached to the back. It will be the base on which the whole wing mechanism will be fastened. It is screwed in with very large washers so it doesn’t tear the fabric.

On top of the plank, two wooden cleats are screwed: one at the top, one at the bottom. On each of them we place two pivot. You just have to put a wood piece between them now and they will be able to pivot back and forth, just like we saw in the “research” section.

It’s on this wood piece that the whole wing will come on each side. So we pierce two holes in each of them.

sac cosplay

Wings

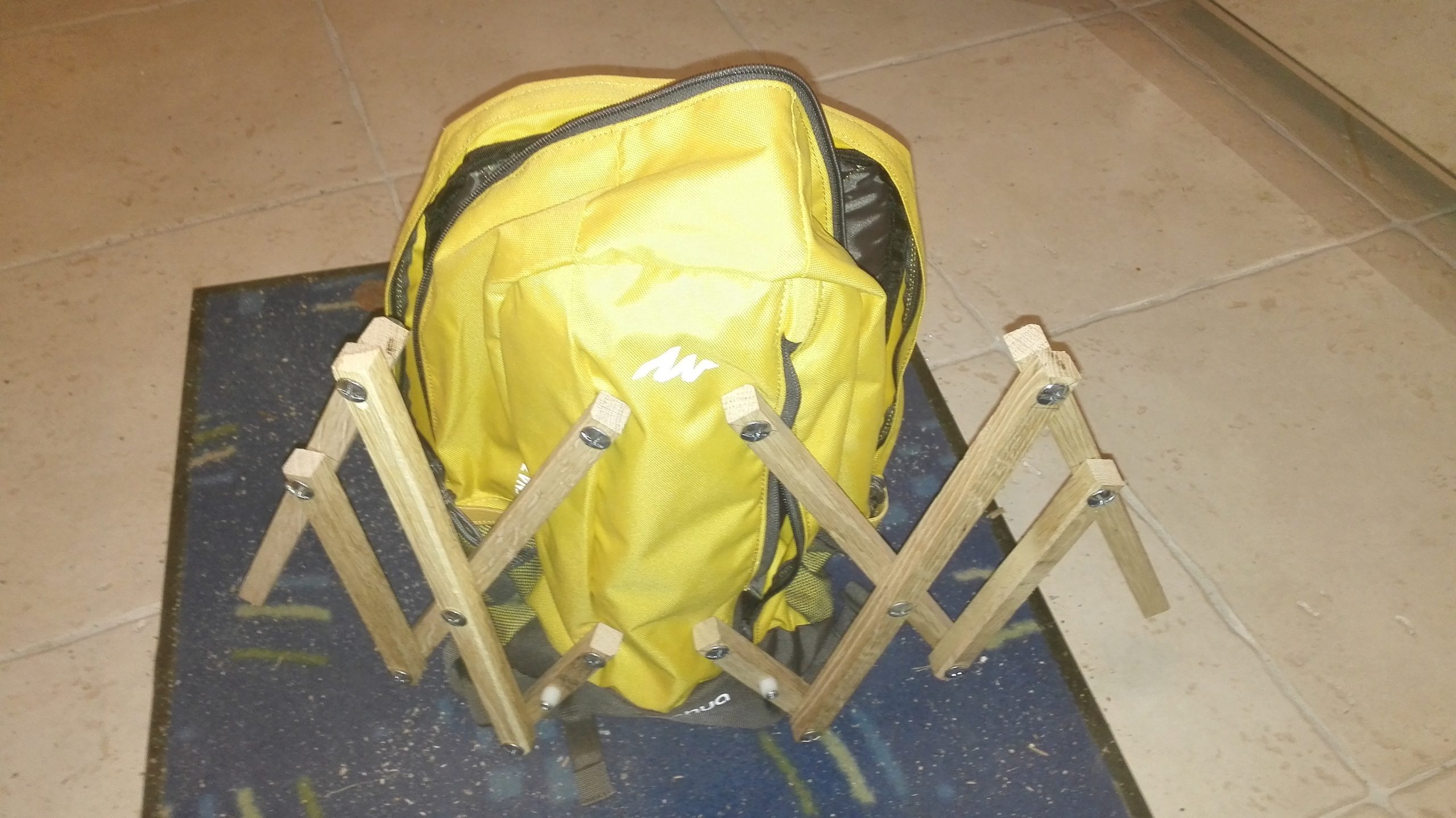

Now we go for the wings. To do this, simply cut the wooden bars (in my case oak 20mm wide, very solid) to the length that has been defined on SolidWorks, drill the holes (preferably with a pillar drill for better accuracy), and assemble these pieces together with screws / washers / nuts (SWN).

The nuts must not be tightened otherwise the entire mechanism is fixed; Therefore, in order to prevent them from being unscrewed and go for a walk while you are showing off, locknuts are used, which remain in place even when they are not tightened.

Tip: if like me you are fumbling with your system and often have to disassemble / reassemble, first use regular nuts which are much easier to screw / unscrew than the locknuts. Locknuts need to be screwed with a wrench from the beginning, which wastes a lot of time in the long run. Also, the plastic ring gets damaged and becomes almost ineffective.

The wings can now be attached to the bag using SWNs. These screws are very long because they will serve as the “stops” on the wooden plate at the base of the bag and thus stop the course from the wings to the front.

Mechanism

Now that the skeleton is in place, we will install all the mechanism to open the wings with the arm.

Three hooks are driven into the wooden cleats, two at the top and one at the bottom. There will be a pulley attached on each, and through each a string will pass.

This string is first attached to the lowest point of the wing (a simple wooden screw is enough), it then passes into the pulley which is on its side, and is tied to a ring. Another string does the same on the other side. A third one goes from the ring and passes into the lower pulley, it then becomes the handle to unfold the wings. These two strings are therefore driven by a single handle. They must be perfectly adjusted to trigger the opening of their respective wing at the same time. The slightest shift will be felt when pulling the string by an unpleasant jerk.

Good, our wing bag is now functional. We must now prepare him to receive our innumerable feathers. They are arranged in superimposed rows, with the main row in the middle, surrounded by two secondary rows, one on each side.

mecanisme ailes

For the main row, 14 holes are drilled vertically into the wooden skeleton, one for each feather, uniformly distributed along the wing.

For the secondary rows it’s a little different. The mechanism being on two layers of wood, I hooked laterally to shift the base of the feathers when necessary. Otherwise, I used simple wood screws. Again, it is necessary to distribute the holes along the length of the wing and to be symmetrical.

tuto ailes cosplay

The bag is ready to receive the feathers, which will constitute our next step and is also the most tedious part.

Feathers

What you need:

  • Foam Sheets
  • 30cm skewers
  • Hot glue
  • String (thick)
  • Flexible paint

matériel tuto plumes

For the material I decided to use foam sheets because it is inexpensive, easy to work with and quite rigid.

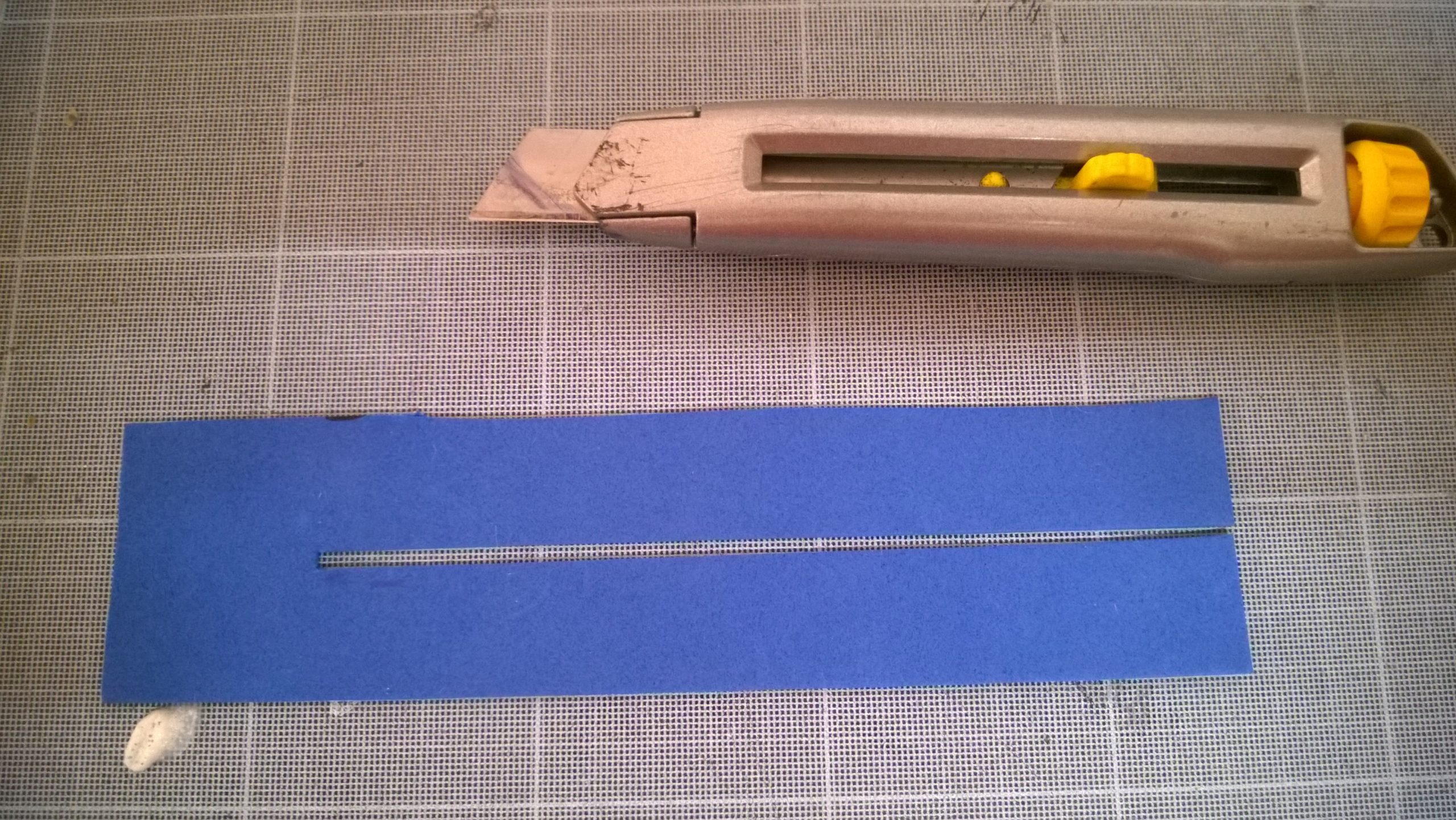

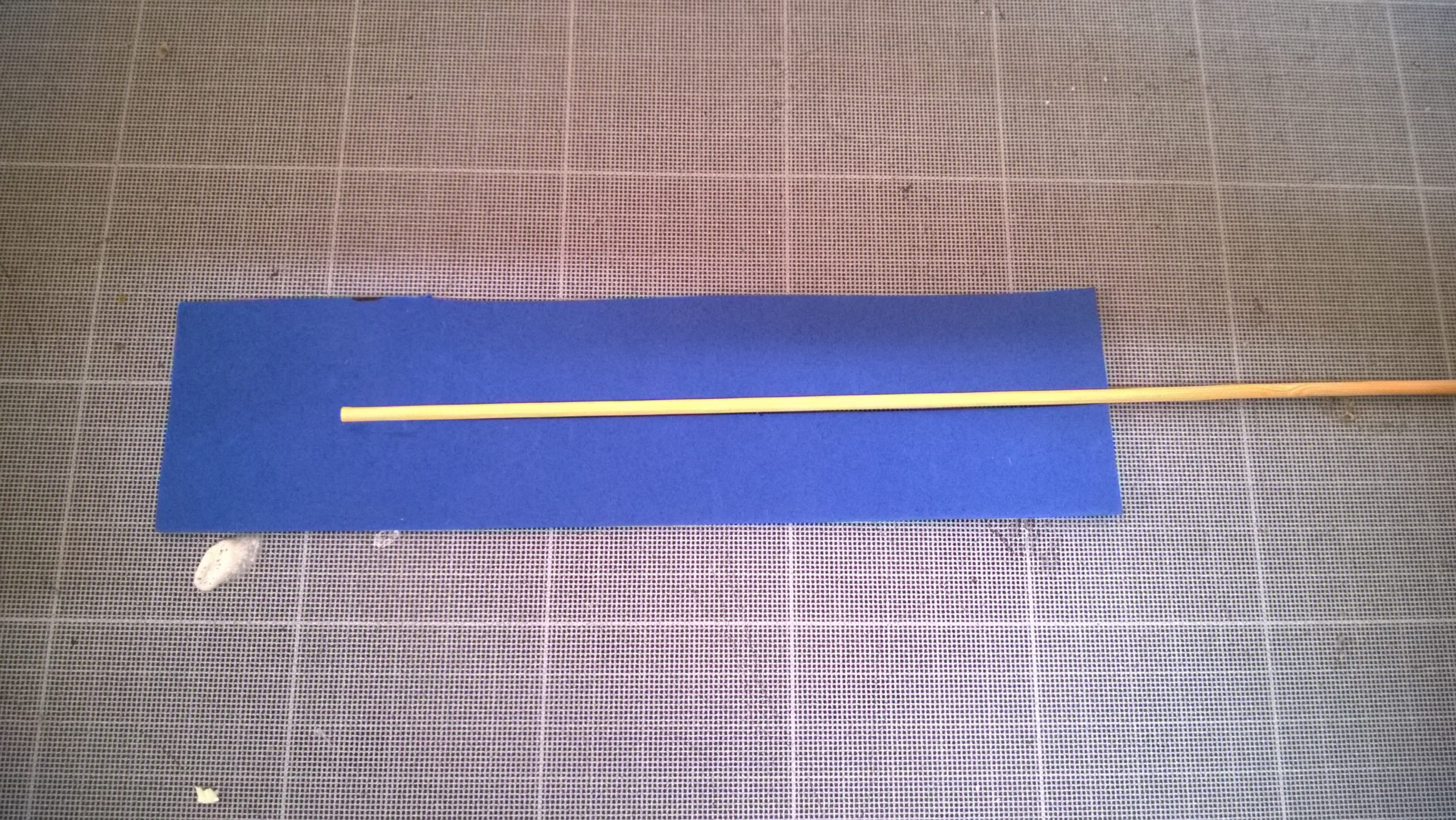

I cut a sheet of foam to the right size. I then cut a column of about 2mm in its center to put the wooden skewer in as the central axis for the feather.

creamousse plumes
mousse eva plume

All that remains is to fix the string by wrapping it around the skewer and pouring a good amount of glue over it.

colle chaude ficelle

To the painting now; Just apply two coats of flexible paint (to avoid cracking when the feathers twist) then two layers of classic paint the color you want.

plume mousse cosplay

Now repeat the process a hundred times.

Assembly

The first thing is to attach the wings to the wooden base of the backpack. It will be easier to put the feathers on the wings then. It is enough to fix them with two SWNs, by the holes of the two ends of wood.

To keep the wings open, you can tighten both SWNs temporarily.

The longest task now is to fix the feathers well, and for the threads connecting each row of feathers, I must say it is all in how you feel it. You have to choose the angle that you think looks best between each feather so you will have a harmonious effect at the end. To avoid this thread from moving along the skewer, I put a point of hot glue each time.

Once each wing is assembled, the mechanisms must be hidden. This I made non removable: large sheets of rounded foam, over the whole, fixed with hot glue again. So be sure that your mechanism works great!

fixation plumes

On this sheet of white foam are fixed the non-articulated feathers, those do not require too much effort: a good amount of glue and it is done. But be careful to adjust the position and the angle to keep the effect!

ailes cosplay

Now connect the two strings of the bag to the bottom of the arms of each wing and your wings are finished!

ailes articulées
cosplay ailes

Improvements

Although the mechanism is generally strong and functional, there are still some improvements that could be made:

  • Some feathers near the joints remain trapped during the folding of the wings and are therefore damaged by using the bag repeatedly.
  • I think a more rigid fixation of the feathers would allow a better movement of the wings and less likely to prevent the feathers from returning to the right place.
  • Speaking of the feathers, I would advise you to use foam sheets of a color close to your desired color. Because even if I have tripled the layer of “Dip”, the cracks are inevitable and become visible when it is bright pink that comes out just underneath!
  • If you have the necessary resources and / or motivation, it would be interesting to look again at the opening movement, because I think the effect could be improved, with a render even closer to a natural wing.

Mis à jour le :

The content of our website is free and accessible to all, do not hesitate to make a small donation to support us if this article was useful to you!

Share: Facbook Deviantart Google + Pinterest Reddit
joris@blackowlstudio.com

Centres d’intérêts : Jeux vidéo comme Heroes of the Storm et Super Smash Bros, collectionneur (modéré) de consoles rétro. Spécialités : Sculpture sur bois et mousse.

47 Comments :

  1. Custom avatar

    Hello i just wanted to know if you could provide a full materials list i really would like to do something of this effect for our school play.

    • Black Owl Studio

      Hi!

      It has been added 🙂

  2. Custom avatar

    Hey!

    Where did you place the trigger that allowed for minimal movement to trigger the opening of the wings?

    • Black Owl Studio

      Hi !
      I do not fully understand your question unfortunately. 🙁

      The trigger (the cord) is attached to my hand, and I push forward with the force I need to open the wings at the desired place. (Push a little and open a little, push a lot and open full wing span)

  3. Custom avatar

    Hi! First, these are gorgeous! You are so talented! Second, you are a genius! All the other tutorials I looked at called for pneumatics or hand cranks. I never thought of a pulley system! Thank you!!
    I was wondering, is there any chance you could list the measurements of the wood? I tried using Solidwork (downloaded it just for this!) but i couldn’t figure out how to use it and I have a convention in two weeks! If there’s any chance you could tell me I would appreciate it so much!! Thank you for the tutorial!

    ~Q

    • Black Owl Studio

      Hey!

      I’ll update the tutorial with a screenshot of the measurements soon 😉

  4. Custom avatar

    Hi, I’ve been look for tutorials like this and finally i found here! Thank you for making this tutorial for readers, so may I ask some questions?
    1, for the feathers, after apply all feathers on the positions, would it like crash together/stuck(cannot be fold) while folded?
    2, other than wood material, can i use pvc or any plastic material to make it lighter?
    3, can i shorter the length for the back (180 length wood part) to make it more smaller the part at the back?
    Look forward for ur reply! Once again really good work!

    • Black Owl Studio

      Hi! I’m glad to see you like my tutorial 🙂

      1 – If the string connecting all the feathers is correctly attached to each one, it should never get stuck. Mine never did at least. :p

      2 – Yes I would advise using a lighter material but be aware that the whole structure has to support up to ~5 kg (high estimate to stay safe).

      3 – Well you CAN if you want but you have to be careful in doing so because it will change EVERYTHING in the course of the wings. I cannot really tell exactly what will happen and where, but I just know that when I drew them I had to change the values little by little because any offset would change the look and feel of the opening course drastically.
      So I’d advise to try your design on scrap/cheap material before using the costly one 🙂

      Have a great day!

  5. Custom avatar

    Hi!

    Great design and tutorial! Forgive me if the answer is obvious but are the measurements in inches or centimeters or …? 🙂

    • Black Owl Studio

      Hello!

      All the measurements on the design are in millimeters 🙂

      Also “Diamètre” means “Diameter” (Super obvious but I figured I could make this comment 0.1% more useful).

    • Custom avatar

      Thank you so much! 😀

    • Custom avatar

      Wht I did was I just took the zero off and used it like that in inches lol, little log on the back but I mean. Oh well it will suffice lol

  6. Custom avatar

    Holy crap. You are awesome. You literally solved all of my problems. I have a dragon that I’m trying to make articulated wings for and could not find anything that didn’t include motors or pneumatics for the wing fed sign. I spent hours trying to jig something for opening and closing the wings and couldn’t figure out anything. Then I stumble across your thing and it’s perfect. Thank you so much.

    • Black Owl Studio

      Hello,

      Thanks for the kind words! I wish you good luck on your build 🙂

  7. Custom avatar

    Maybe I’m crazy doing this with only a month left to go, but my son wants to be X-men’s Angel (training costume, like the one from first class) for Halloween and we’re gonna DO THIS!!! You are awesome to share this information!! Thank you!!
    Dizzyrizzy
    IDAHO, USA

    • Black Owl Studio

      Hey good luck on your build and thanks for the kind words ! 🙂

  8. Custom avatar

    Black Owl,
    I’m well on my way to having my own wings, thanks to you, but I have a question for you! Is the longest feather that forms the tip of your wing, is it fixed so that when your wings open, the other feathers are tied to the fixed feather and open with it? If so, how did you fix that feather in place? It looks like they all hang from the vertical holes that your drilled, but when I watch the video of you opening the wings (again, and again, and again…I love this page!!), it seems like the outermost feather is fixed in position.

    Thank you!
    Dizzyrizzy

    • Black Owl Studio

      Hey!

      Yes exactly the outermost feather is fixed so all the others are pulled by it via the string. 🙂

      To fix it you can use pretty much anything that keeps stuff in place ;). My way of doing it was to use a metal wire in place of the wooden sticks for the middle of the feather, and knotting the feather tightly to the wooden wing frame. In hindsight it was a bit too fragile and I would advise you to use something thicker and also a strong glue to keep it on the frame, but its your call 🙂

      Hope it helps!

  9. Custom avatar

    Very nice !
    Can I order from you?
    I need a simple white angel articulated wings ^^’

  10. Custom avatar

    I was wondering what the full wing span is for your fully opened wings? I am looking to make a raven with wings that can open as a companion animal for a costume I am making and want to adjust the sizes correctly for a realistically sized raven.

    • Black Owl Studio

      Hey !

      I think my full wingspan is about 2 meters wide 🙂

      If you change any measurement be sure to change them all accordingly so the mechanism stays proportional 😉

      Good luck!

  11. Custom avatar

    Hey,

    This is awesome and a true life saver! I am trying to build one for my niece’s project!
    Can you please provide the location of the screw holes – dimensions in mm?

    Thanks!
    R

    • Black Owl Studio

      Hello,

      Thank you for the kind words 🙂

      The screw holes are always 5mm away from the closest edge.

      Good luck !

  12. Custom avatar

    Hey there! I absolutely LOVE your wings and am currently starting to make my own. I’m just really confused with the pulley system. What connects to what and it would really help if you had some visuals but, if you don’t that’s okay too. Thanks,
    -Ashley

    • Black Owl Studio

      Hi!

      The 12th picture (click on any picture to scroll through them) is the visual you’re looking for. The whole pulley system is there.

      I’ll run you through it to explain it as well as I can.

      – Your arm is connected to the string at the bottom. On this photo the string is tied around a loop to keep the wings in the “open” position, but to open them manually you have to pull on this string.

      – Since you pull the string with your left arm away from your body, the string comes from the left side of the backpack, hence the bottom pulley tied on the right and facing left.

      – This pulley will transform your movement from “right-to-left” to “top-to-bottom”.

      – The string is then split in two via a ring, and these two new string each go to one side. It makes one movement move the two wings.

      – The two top pulley now invert the “top-to-bottom” movement to “bottom-to-top” on each side.

      – The end of the string is attached to the lowest point on the wooden bar on each side. Moving this piece makes the whole wing move. The movement needed is a “bottom-to-top”, the one we just transformed with our pulleys 🙂

      Hope it help, and good luck on your wings!

  13. Custom avatar

    Thank you SOOOO much!! This really helped!

  14. Custom avatar

    Hey I am making a nightmare moon costume so I have some questions. What kinda foam did u use, and if I was to paint them two different colors on the same feather (purple tips) is there any way I should do it (angle the paint or put the paint on in a pattern)

    • Black Owl Studio

      Hey there!

      The foam we used is called Créamousse in french, but the specifications are fairly standard : a A4 sized sheet, 2mm thick, EVA foam. It comes in different colors.

      I would recommend buying the foam directly matching the color you plan on wearing so you won’t have to suppress the background color when painting the foam.

      I’m fairly sure that once you have a smooth surface you can paint it any way you like 🙂

  15. Custom avatar

    Hey is it ok if I make a video of this? Oh and how much foam would you recommend for all of the feathers

    • Black Owl Studio

      Hey,

      Yeah sure as long as you credit us there’s no problem 🙂

      How much foam? well it’s hard to say but around two square meters if not a bit more…

  16. Custom avatar

    hi!!!!

    thank you for the tutorial and the mechanism its easy. now i can use the wings for may fantasy costume in pageant

    more blessings and power

    • Black Owl Studio

      Thank you very much!

  17. Custom avatar

    Thanks for figuring all this out and all the great documentation. One quick question, I was trying to replicate your model and I’m missing one dimension. What distance is the center pivot point in the 250mm member from either end?

    • Black Owl Studio

      Hi,

      So I did update the article a while ago but forgot to update this one image. The distance you’re looking for is 8cm. It is not that important actually the only thing you need to do is keep this bar parallel to the one on it’s left. The gap could range from 10 to 2000 or whatever and it would work as long as it is parallel. 80mm just seemed harmonious when I drew it :).

      Good luck !

  18. Custom avatar

    Is there any way you could give the measurements of the feathers? Thanks for the awesome tutorial!

    • Black Owl Studio

      Hey!

      Sorry, I have no idea about the length anymore. The very first was about one meter long and they gradually decreased as they approached the end of the wing…

      You’ll have to tinker around and find your preferred shape. I would advise drawing a big wing like we did :). All of my measurements were based on it!

      Good luck!

  19. Custom avatar

    How tall are you? I want to make my wings proportionate. Also, what is the total length of one wing?

    • Black Owl Studio

      Hi,

      I am 1,80m tall. And I think one wing is about 1,20m long but I could be wrong, it’s been a long time… 🙂

  20. Custom avatar

    Hey! This is so cool! I was wondering if I could use a material other than foam for the feathers? such as feathers you can buy in a craft store? Thanks!

    • Black Owl Studio

      Hey!

      Yes I think you can try using anything but be aware of how you put them on the frame, because if they get stuck in the folding point, they will eventually break when you use the wings.

      My own wings have suffered greatly from this but luckily the foam holds up pretty well. It might be a different story for real feathers though…

  21. Custom avatar

    Could I please see a clearer example of your rigging? (ropes, pullies, etc.) I cannot seem to get mine to function even though they are placed in the same location. The wings want to clamp shut rather than pull open. I am doing a non feathered variant. (canvas wing)

    • Black Owl Studio

      At the time we were in such a rush for Blizzcon that we really skipped a lot of the photo-taking. 🙁

      Now when complete the underlying mechanism is almost invisible, which is good for use, but not for explaining how it works…

      I can only try to explain further (which I did in another comment), and if you send me a picture I might be able to help. 🙂

      Good luck!

  22. Custom avatar

    Is this still functional with spray paint in silver? If so, great. If not, would you please recommend a silver paint (either spray or not) that would work? Thank You

    • Black Owl Studio

      Yes I think it will work just fine. 🙂

  23. Custom avatar

    How much did everything cost you? (Just an average would be fine)

    • Black Owl Studio

      I think all in all it took about 60€ but it’s been a long time so I may not remember too well.
