Making-of: Vorpal Blade

Publié le : (Mis à jour le : ) Tags : , ,

I reaaaally love Alice: Madness Returns, the story and the atmosphere of this game makes it one of my favorites. Vorpal Blade is Alice Liddell’s main weapon, we find it on Jabberwock’s skeleton at the beginning of the game. I like its «butcher knife» look, engraved with tiny flowers, subtle but sharp-edged 😉

We had 2 constraints for this prop :
1) Crafting the blade with Worbla (resin cast would not fit a convention security rules).
2) Finishing the prop in less than a week (it finally took us less than 5 days, tss too easy ^^).

Alice Madness Returns Artwork

Vorpal Blade 3D model

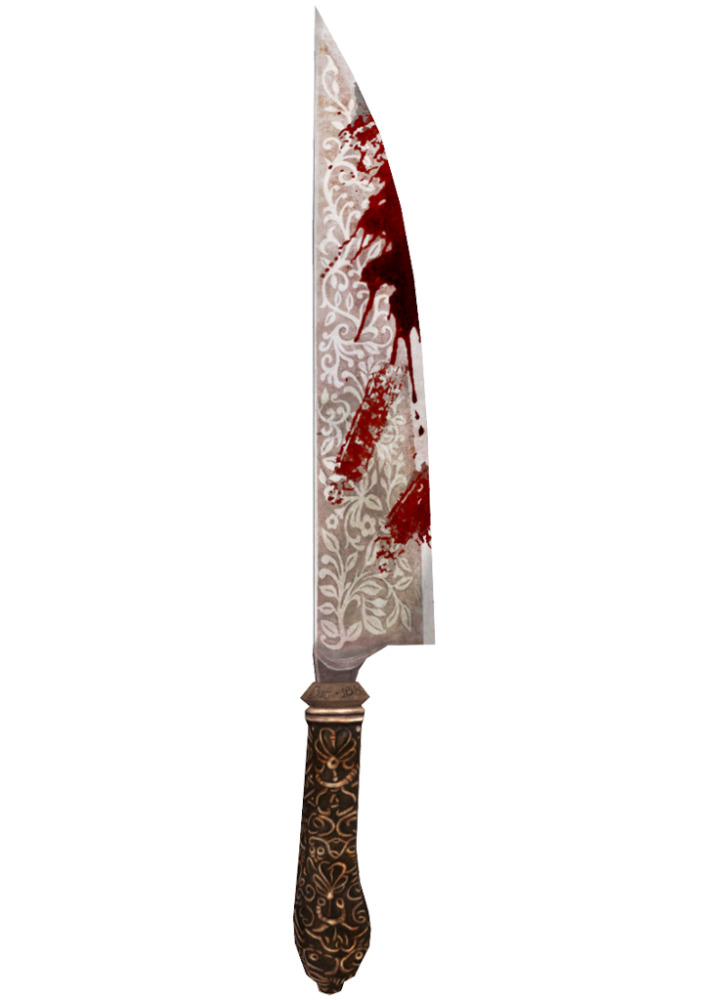

In-game 3D model

vorpal blade poster
«The Vorpal Blade» – Goes snicker-snack!

MDF Structure:

First step: creating a solid structure.

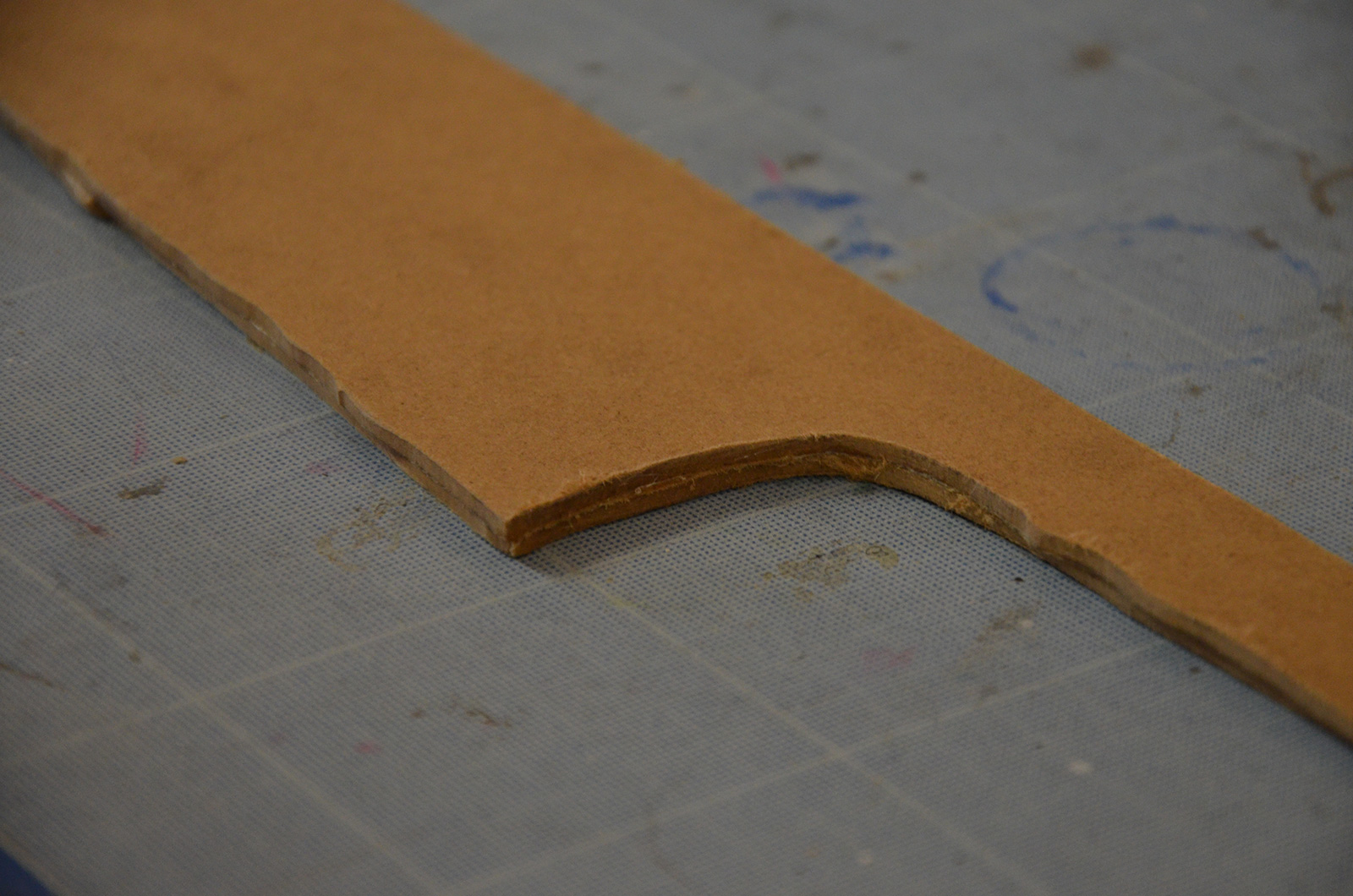

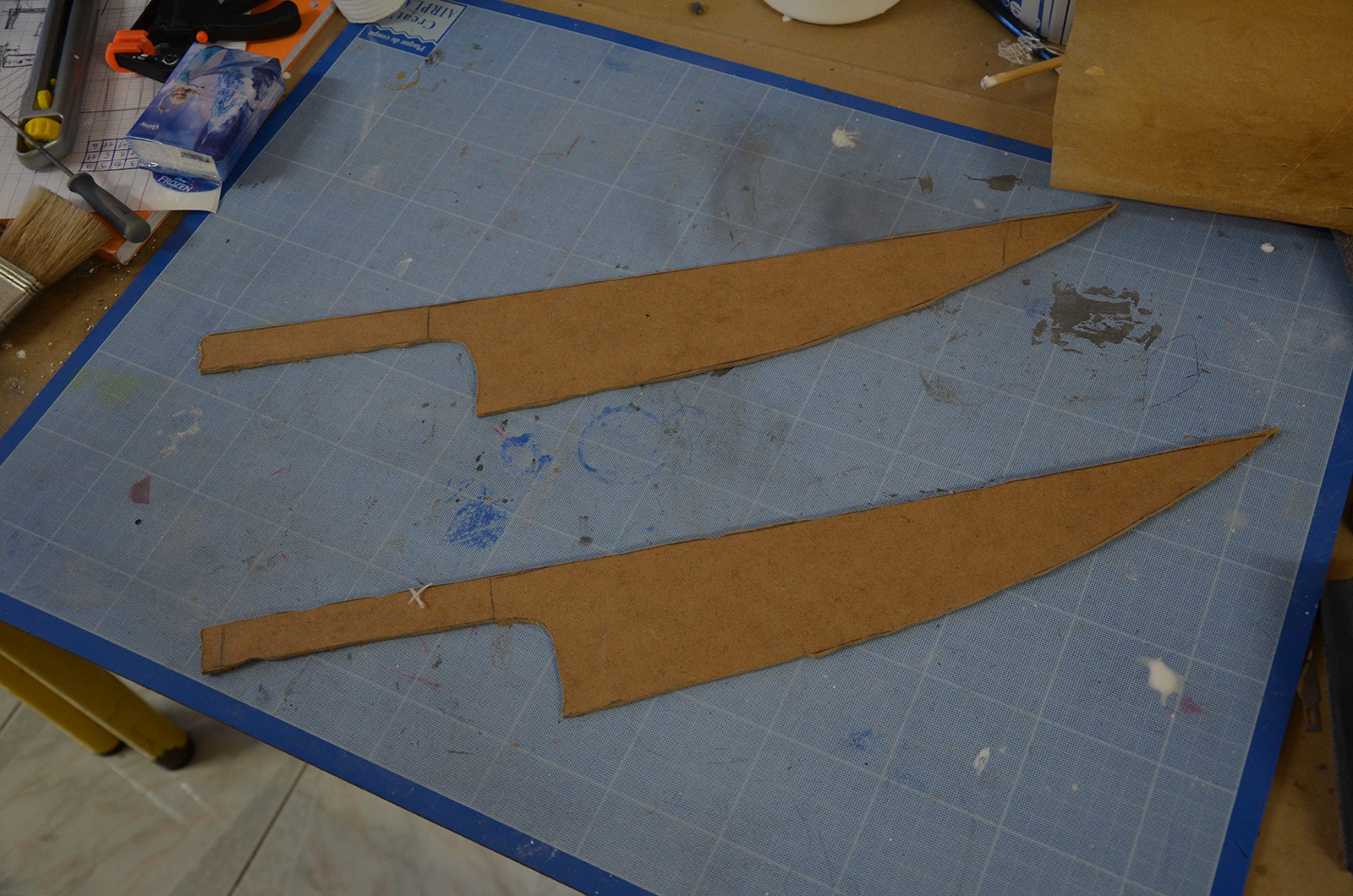

We choosed MDF (particleboard made from composite wood), quite easy to work with. As we already had a 3mm-board, we cut the shape twice, and glued the two parts with contact adhesive to get the right thickness.

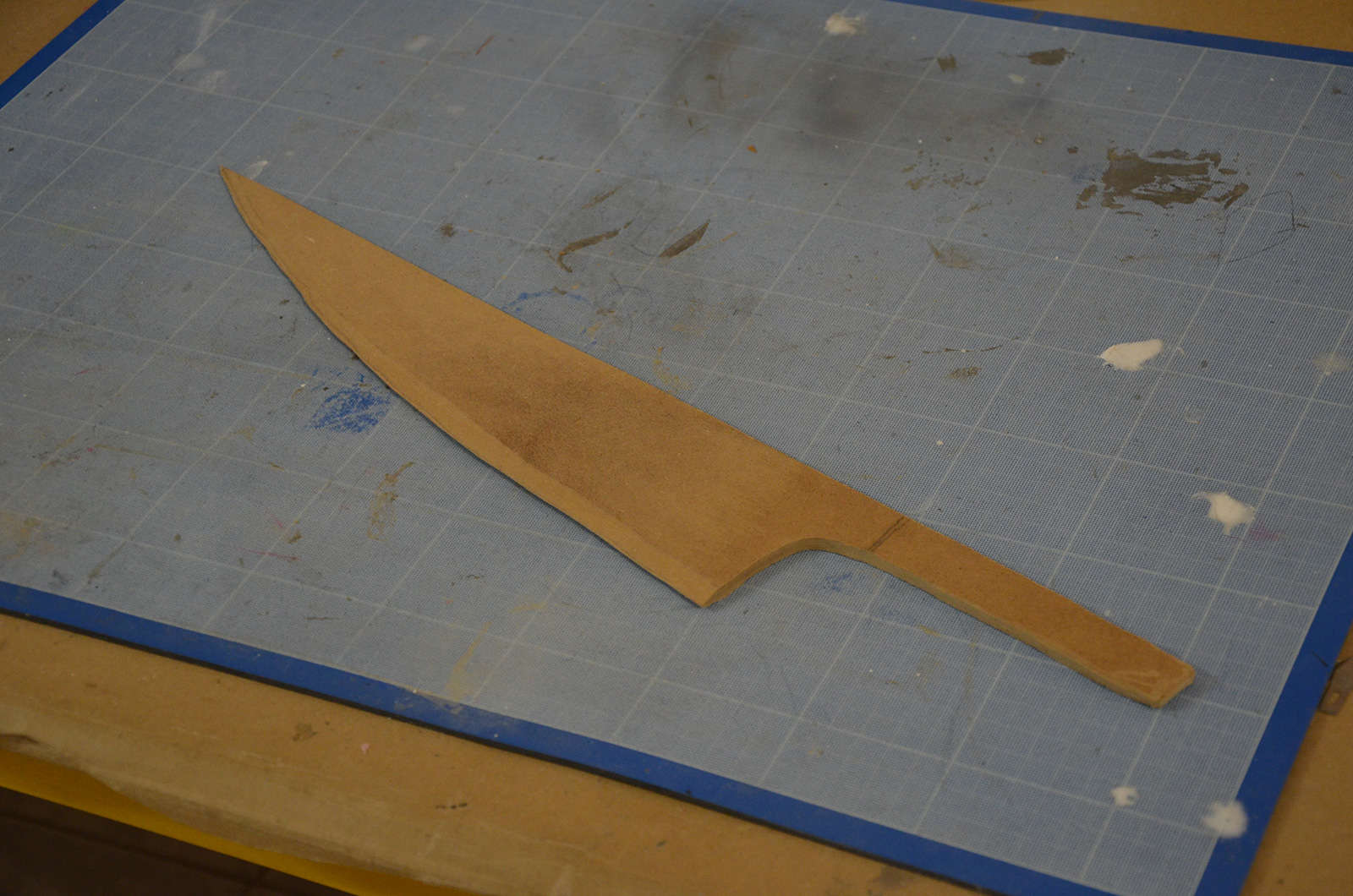

Now, let’s sand!

medium vorpal blade
medium contact cement

blade medium sanded



Tests:

test gif portal
Test. Test test test. TEEEEEEEEEEEST!!!!!!

Before I can work on the proper blade, I prefered making some tests to know which method I should use to craft floral patterns.
1st méthod: digging Worbla with a pyrographer… result was a bit, hmm, let’s say it was not so great.
2nd method: «embossing» – I flattened the surface by hand thanks to sculpture metallic tools (this method was already used on my Warsong Commander’s axe for instance), result was nice, but it gives a too «rustic» look.

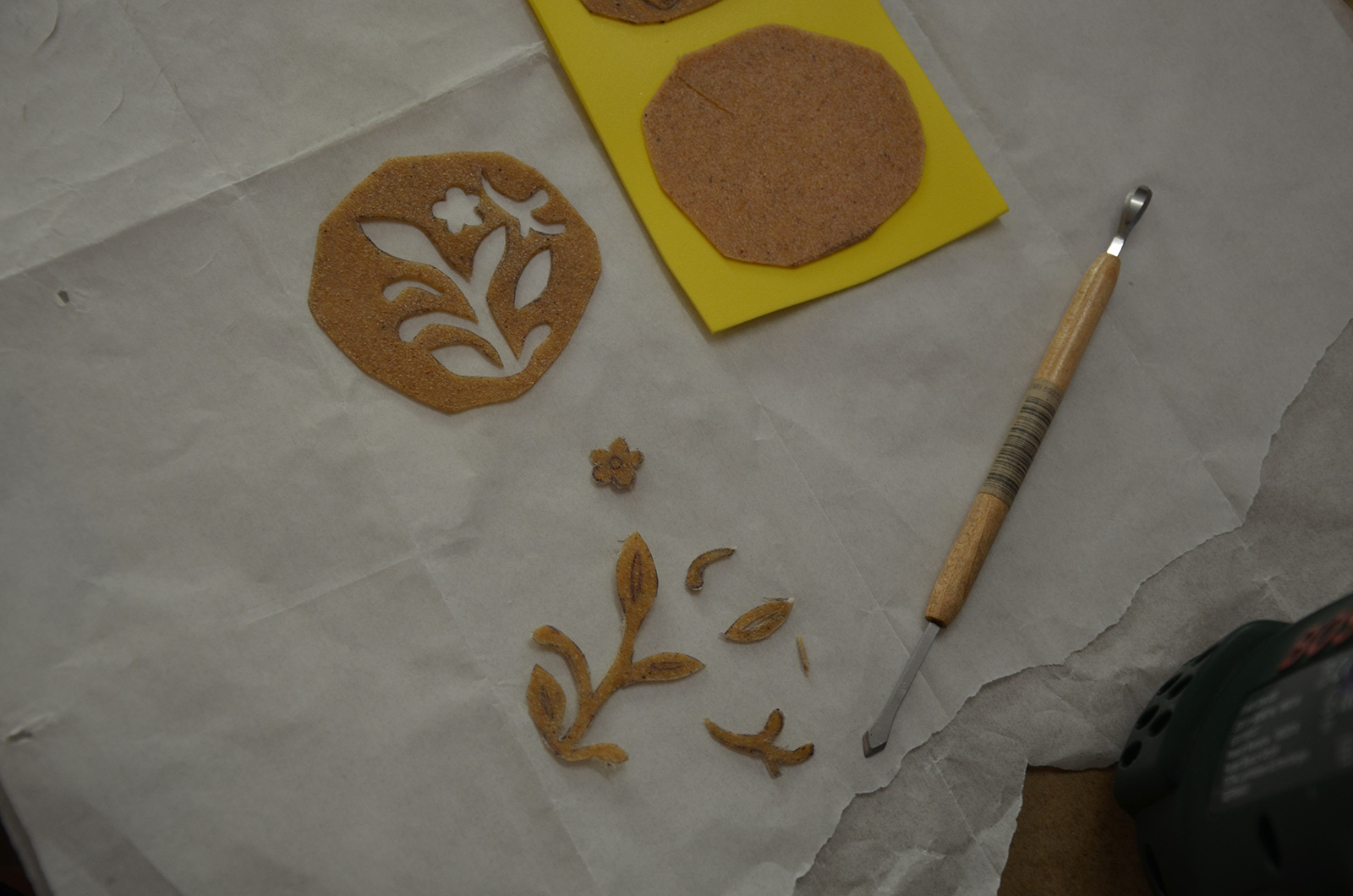

3rd method: cutting pattern in a Worbla sheet and gluing it on a second one, this is the most relevant result to my eyes.

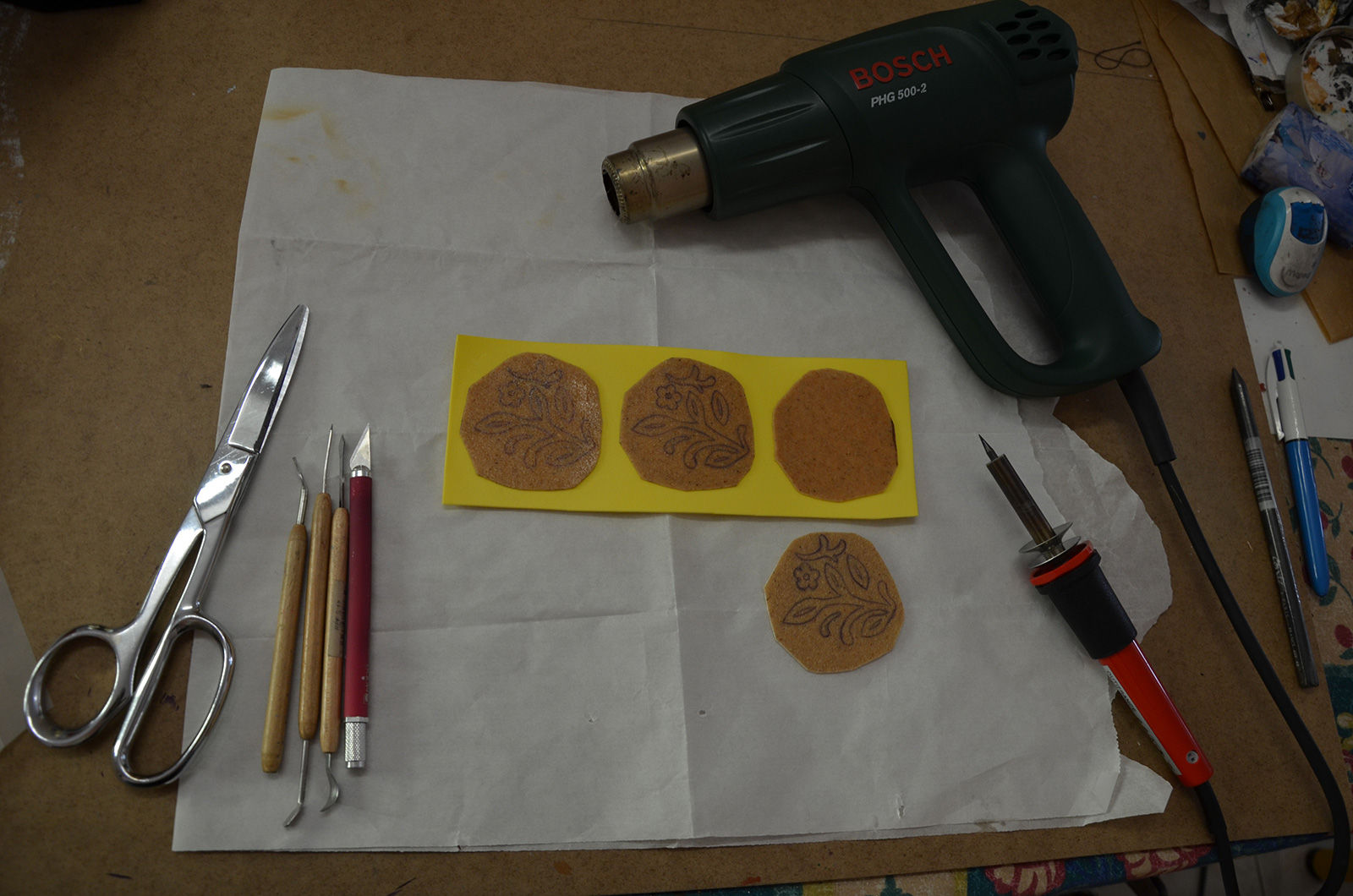

worbla tools
Tools

worbla cut
3rd method: cutting

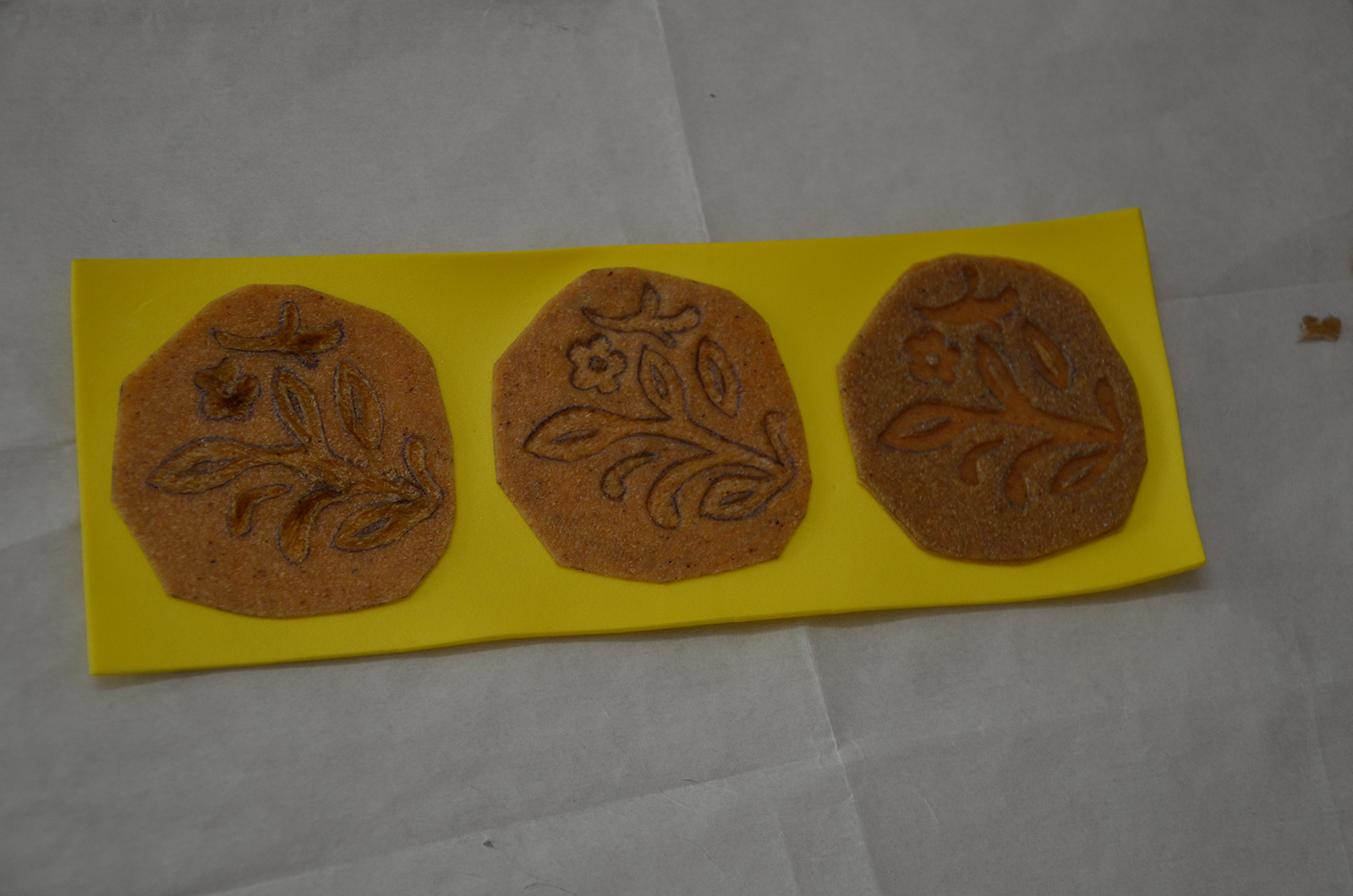

worbla tests
From left to right: pyrographing, embossing, cutting (rough Worbla)

Worbla primer tests

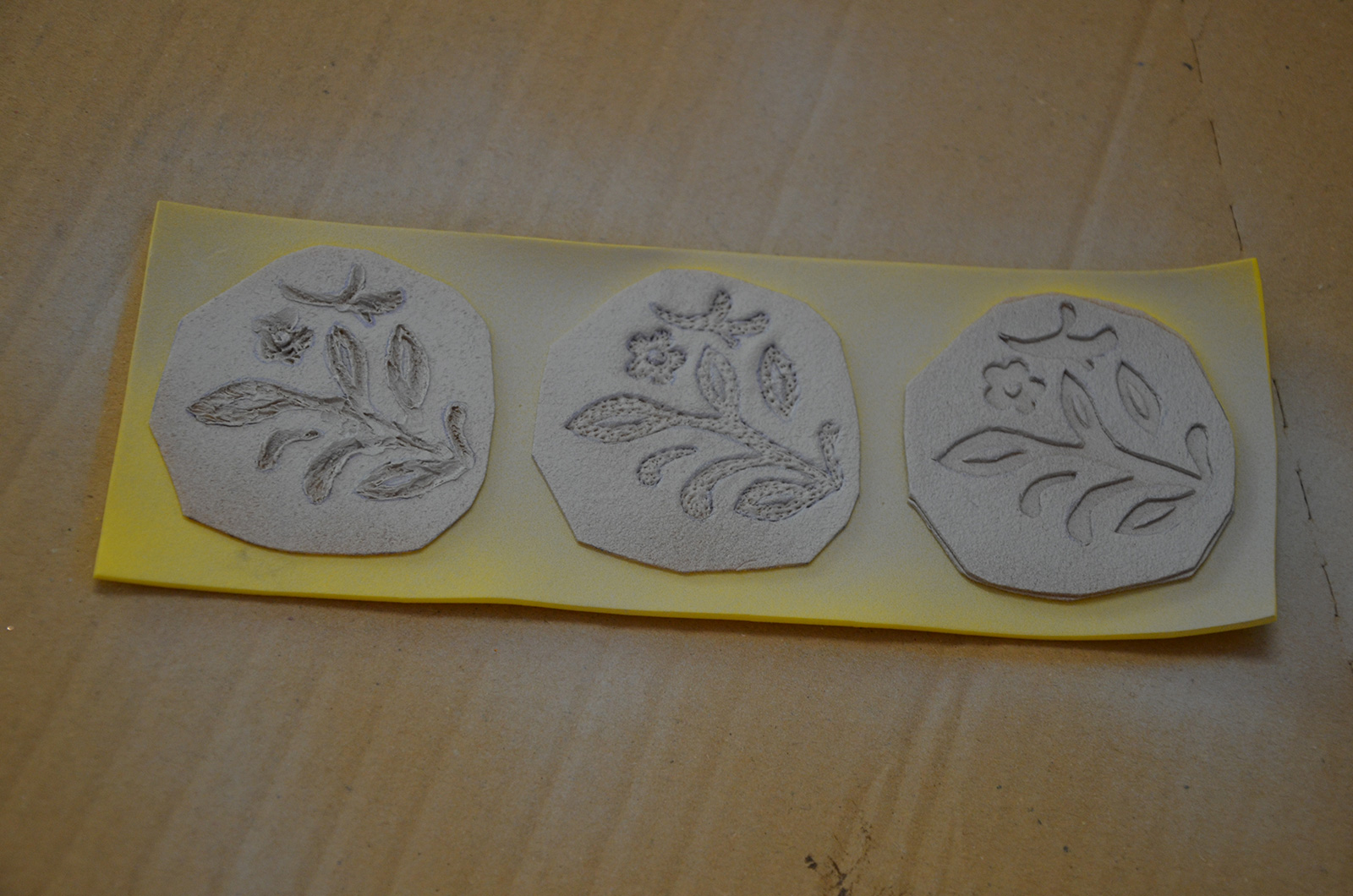

From left to right: pyrographing, embossing, cutting (Worbla + primer)

Blade details:

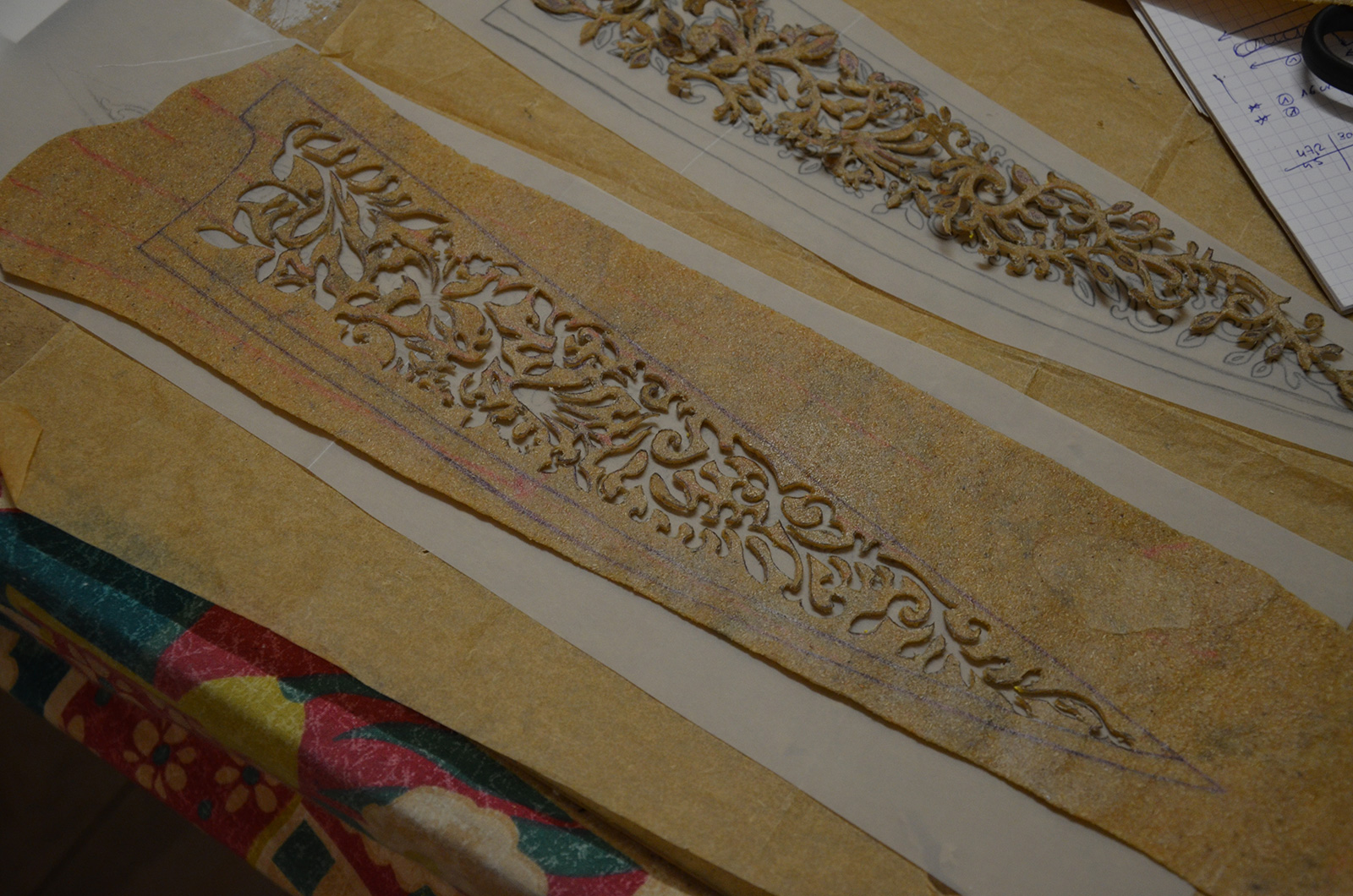

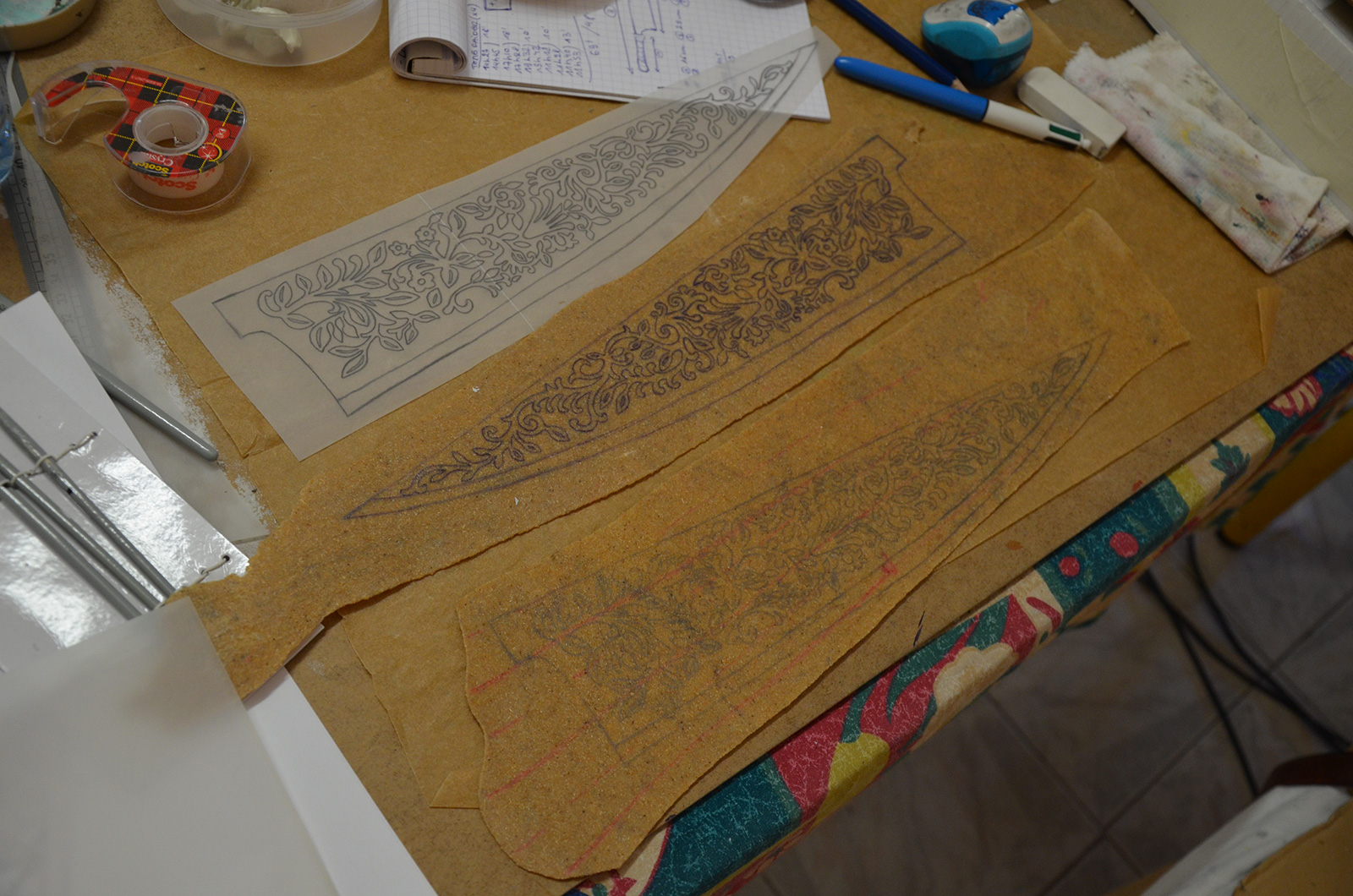

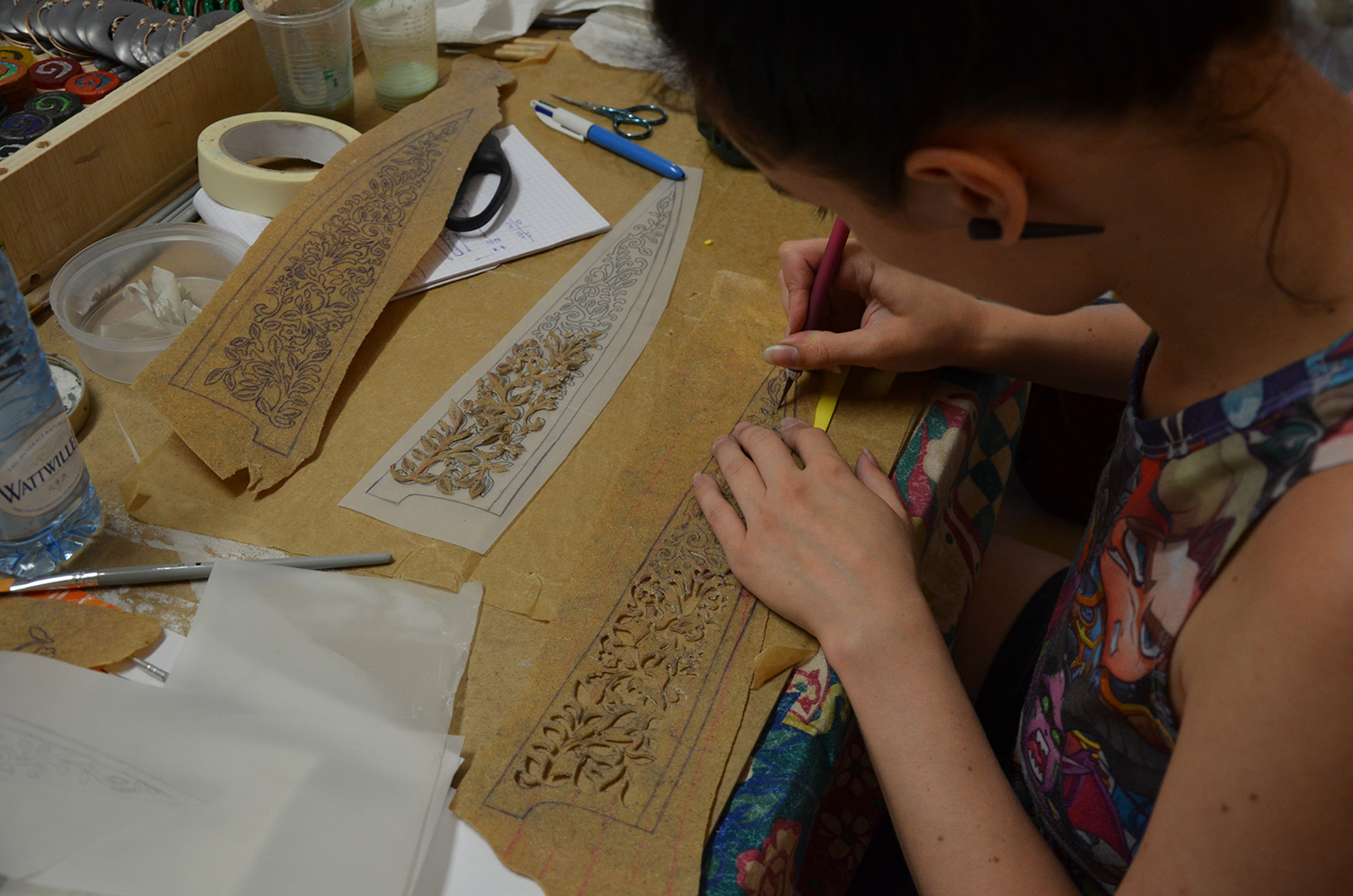

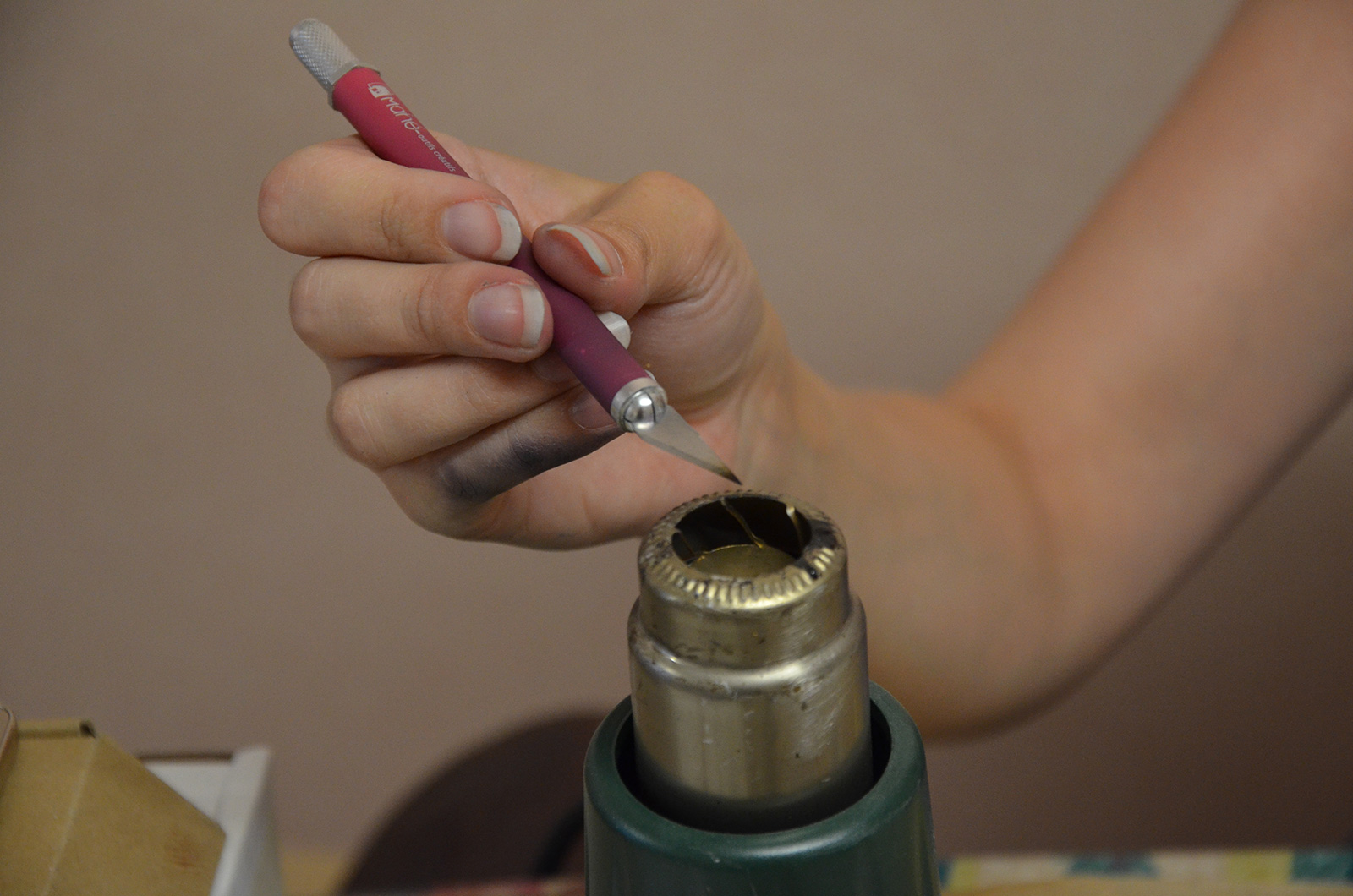

After having re-drawned the blade and its pattern on two Worbla sheets, I began to hollow out the pattern with a precision knife… as it was a bit too long when only heating up the Worbla sheet (and as the sheet got a little distorted), I tried a different way: heating up the knife blade instead of Worbla. First, it became really much easier, the knife blade cut like if the Worbla was butter, and I was pleasantly surprised to see that the result was rather clean.

Downside: as you need to heat up the blade really often, the heat gun turns continuously next to you, so fun during summer when it’s already 30°C outside 😉

worbla dessins
worbla heatgun precision knife
worbla découpe
worbla cutting

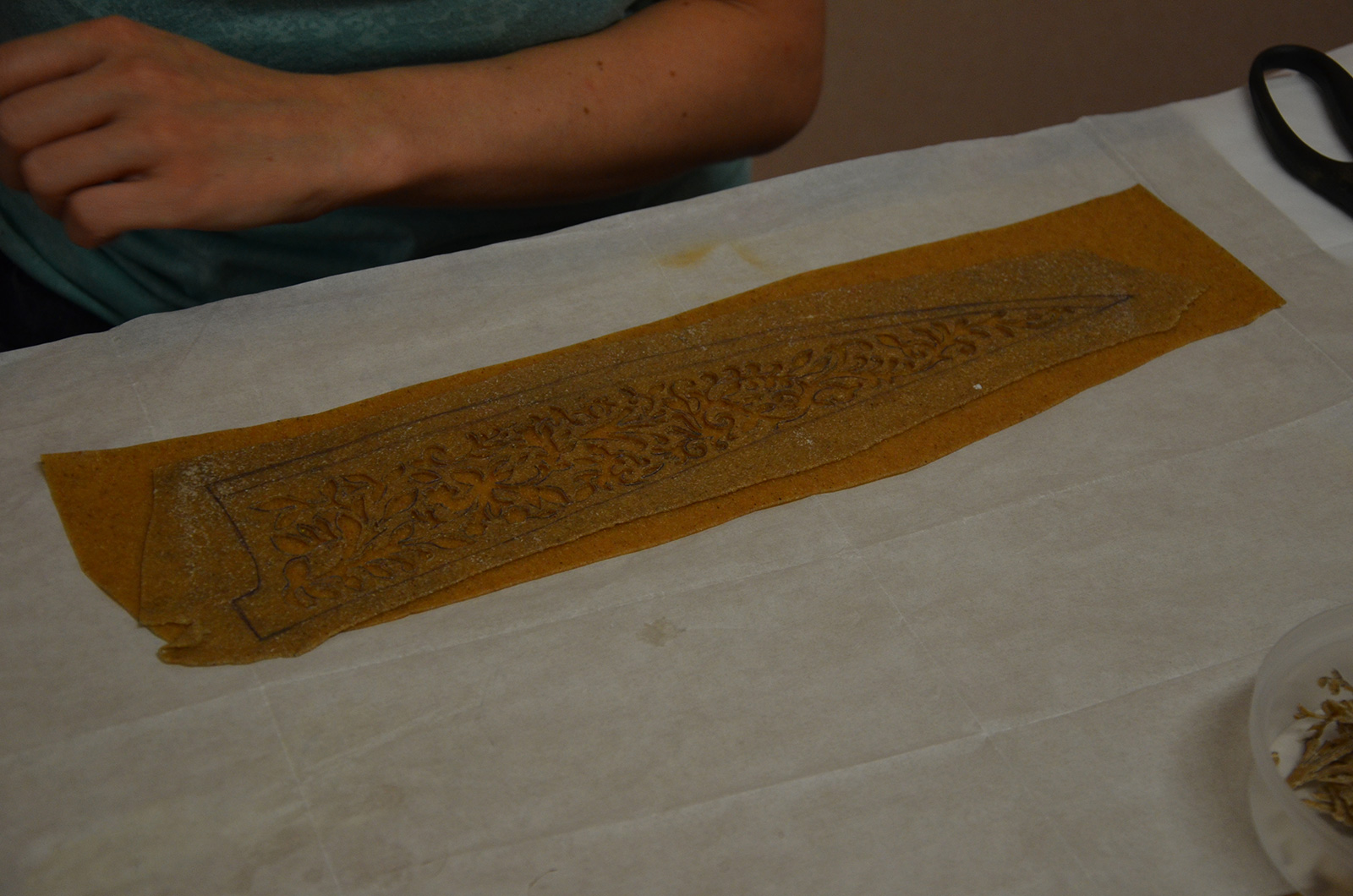

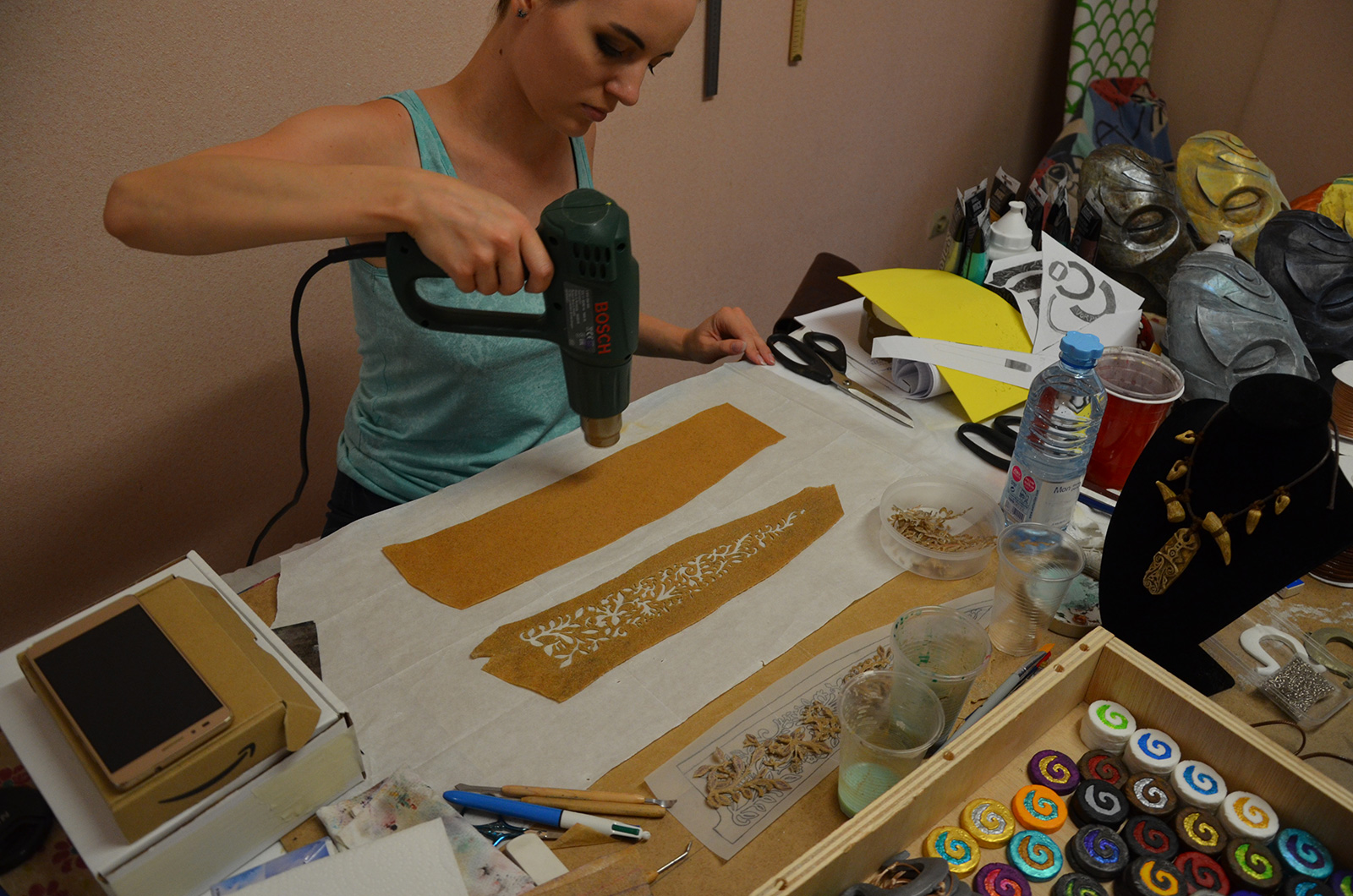

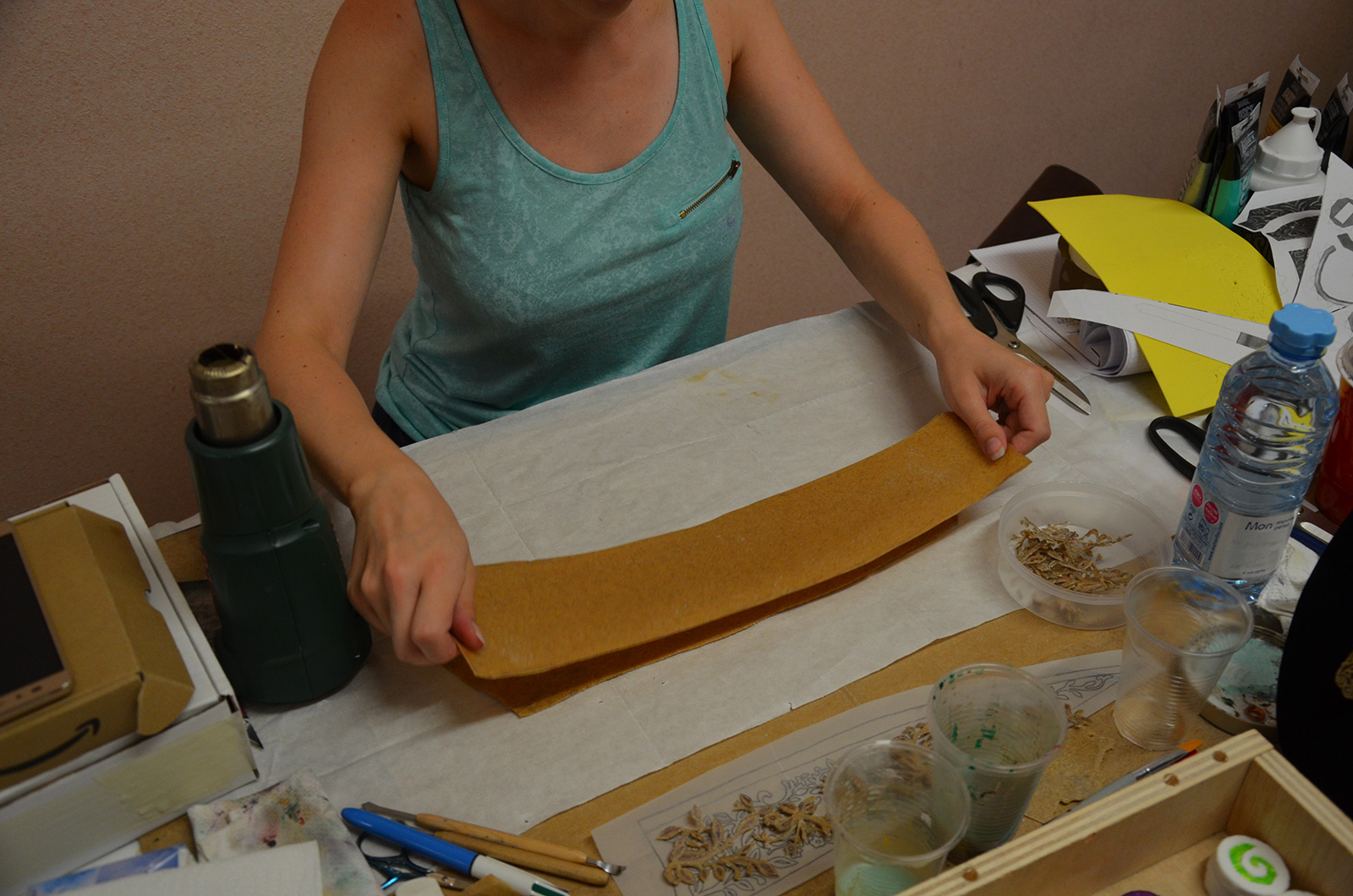

Once the pattern is done, I returned it (beware, it needs to be fully «cold»). Every piece of the pattern needed to be as its right place, nothing distorted, so I could heat it up. Beside, I heated a second Worbla sheet, and applied it on my pattern.

We normally use to stick details ON back surfaces. But, there, by doing the contrary, we avoid distorting the pattern by lifting it while it’s warm 😉

worbla pistolet à chaleur
worbla heatgun
worbla details
worbla on mdf

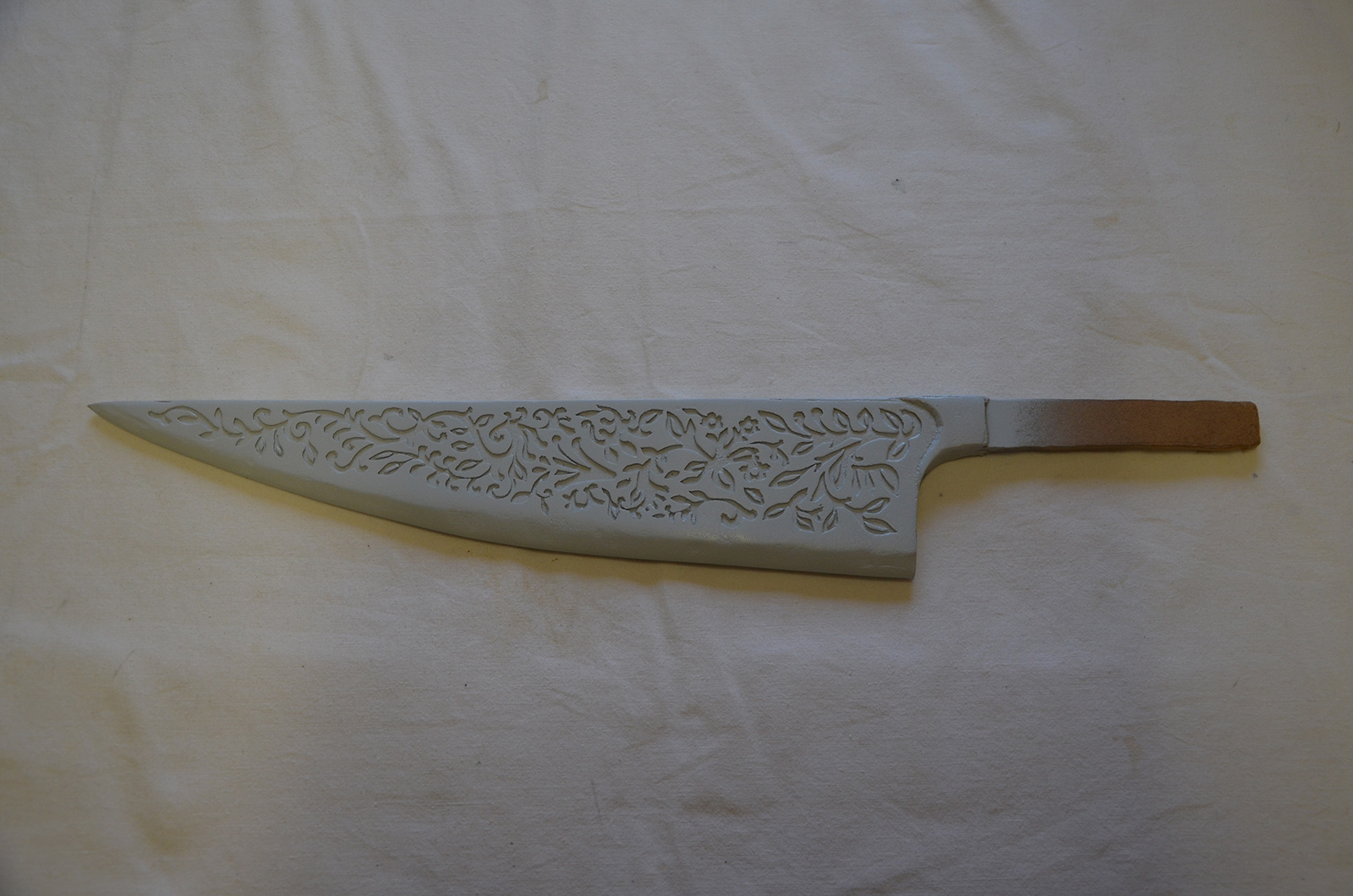

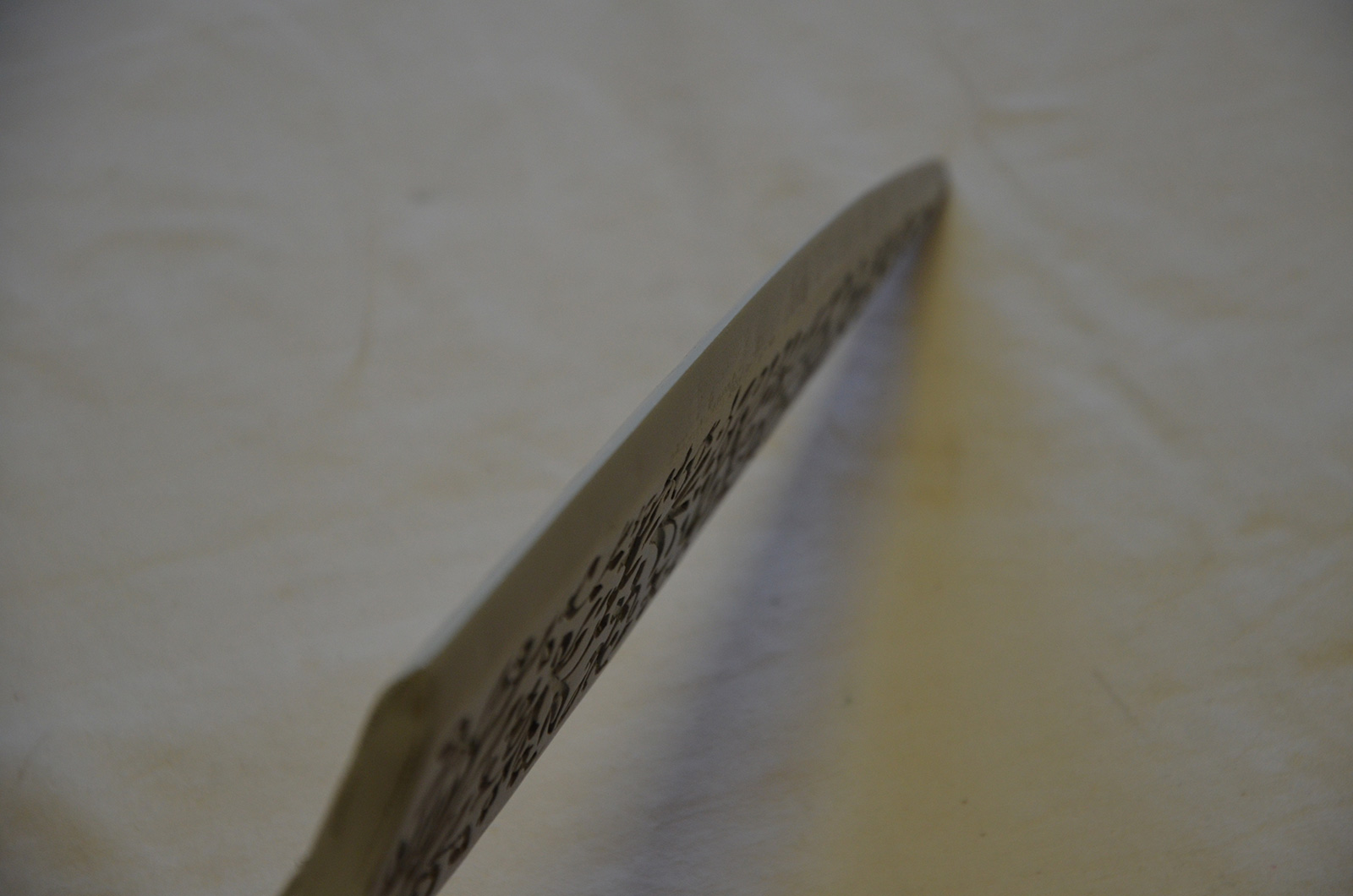

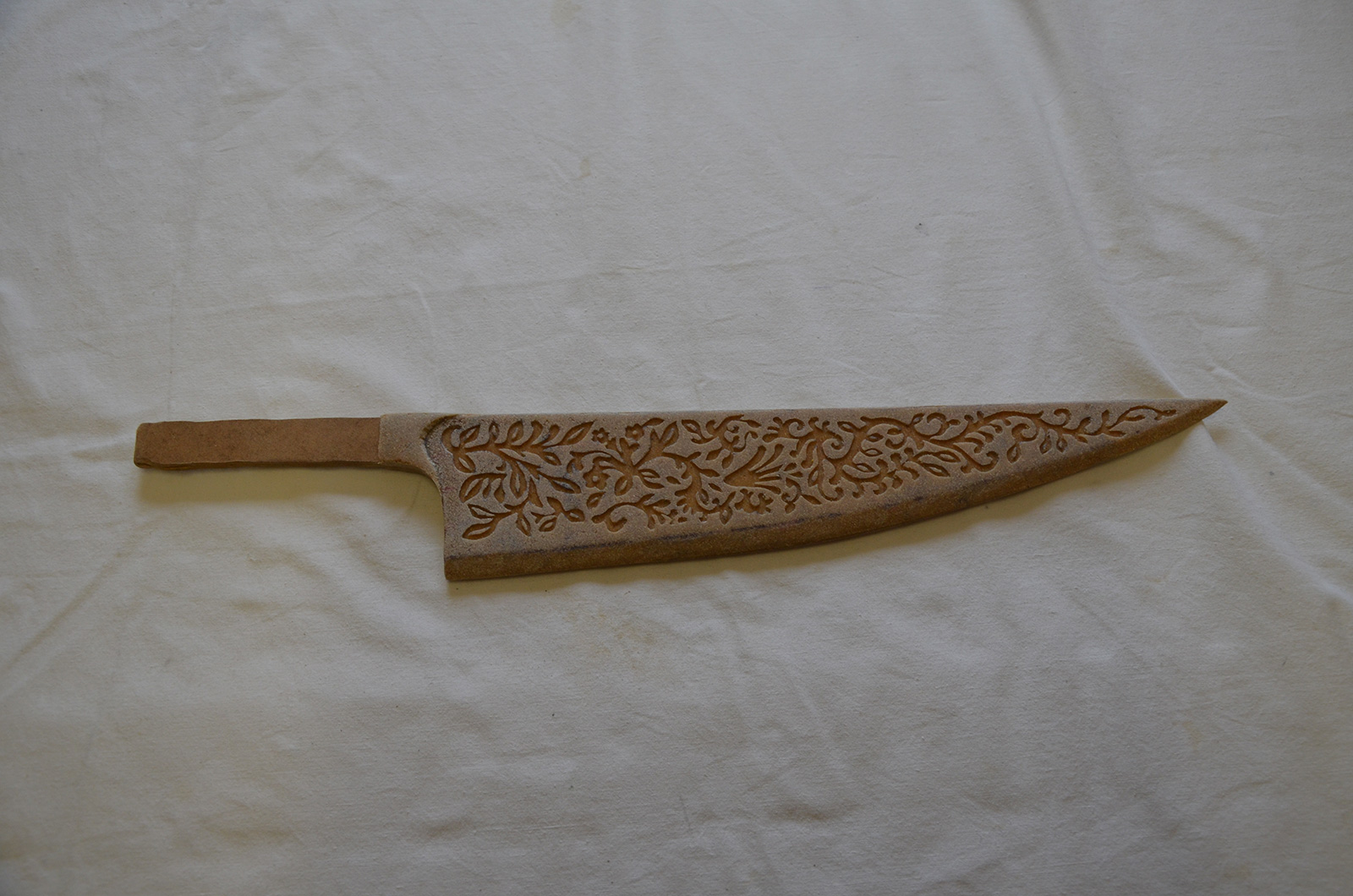

We sticked Worbla on the MDF basis. The blade was reworked by applying several layers of bondo, and sanding it each time. To soften Worbla texture on the pattern part, we applied primer and water sanded it.

worbla apprêt
worbla blade

Handle:

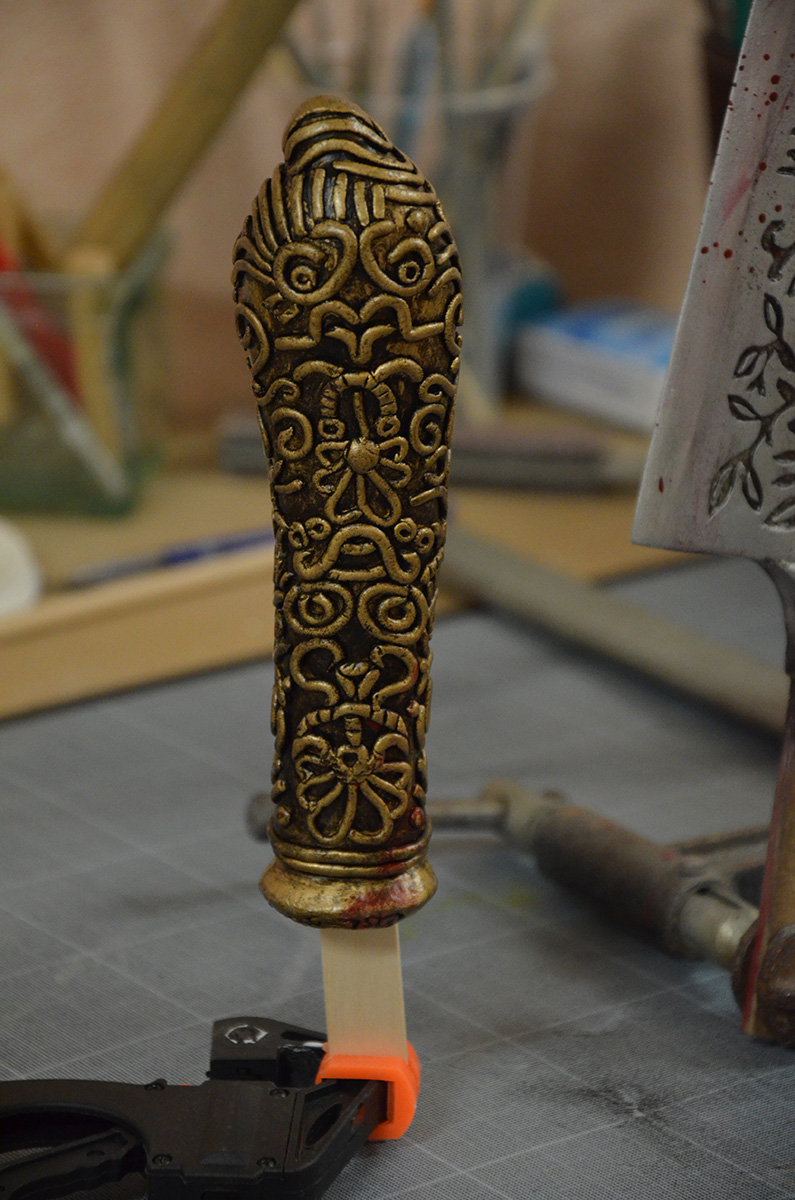

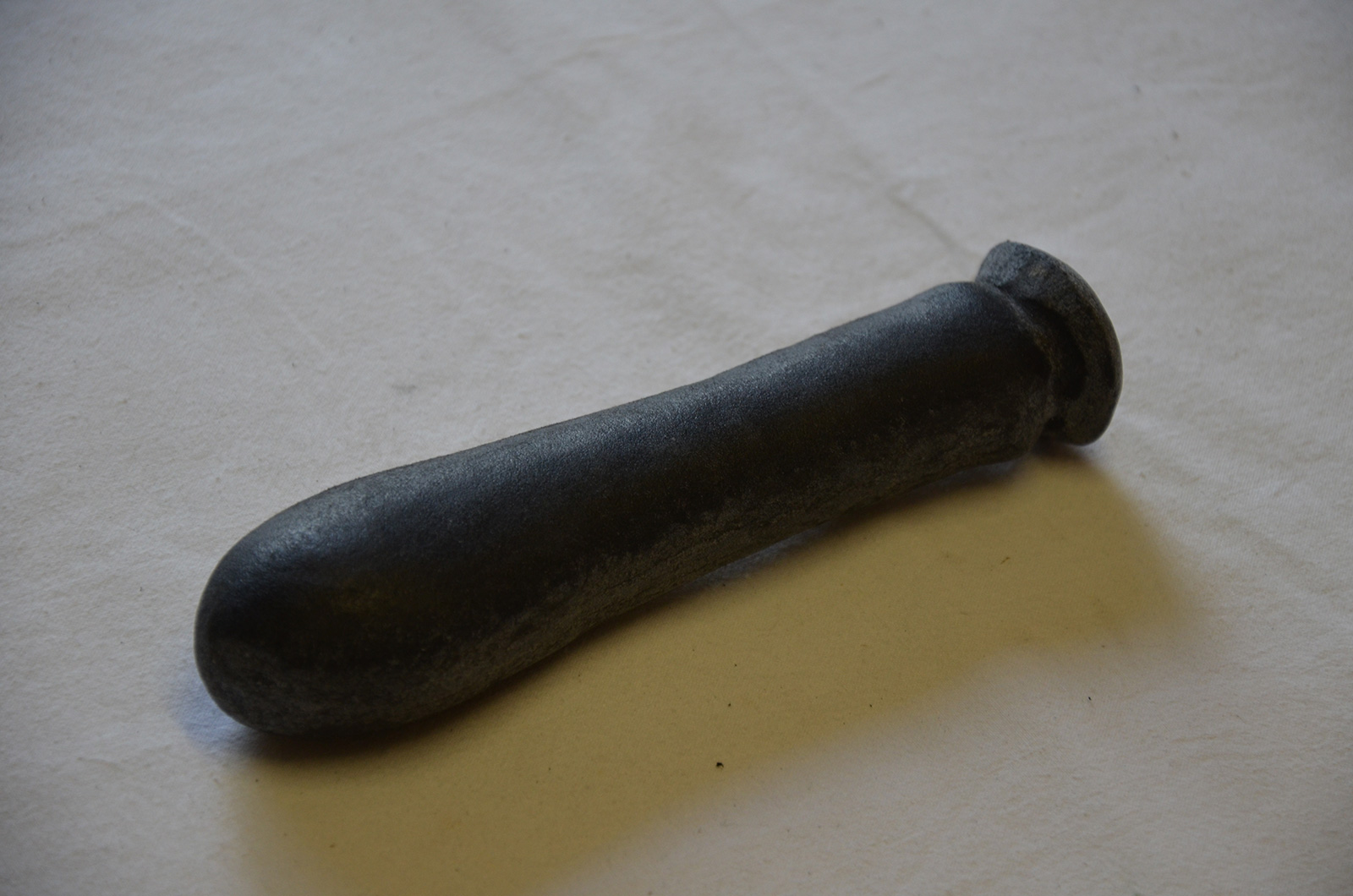

The handle was sculpted in EVA foam, then covered with Black Worbla.

For those who are not familiar with this material, this is to mention that Black Worbla is composed of thiner particles than classic Worbla. It’s texture is therefore softer, and you can craft smaller and more accurate details.

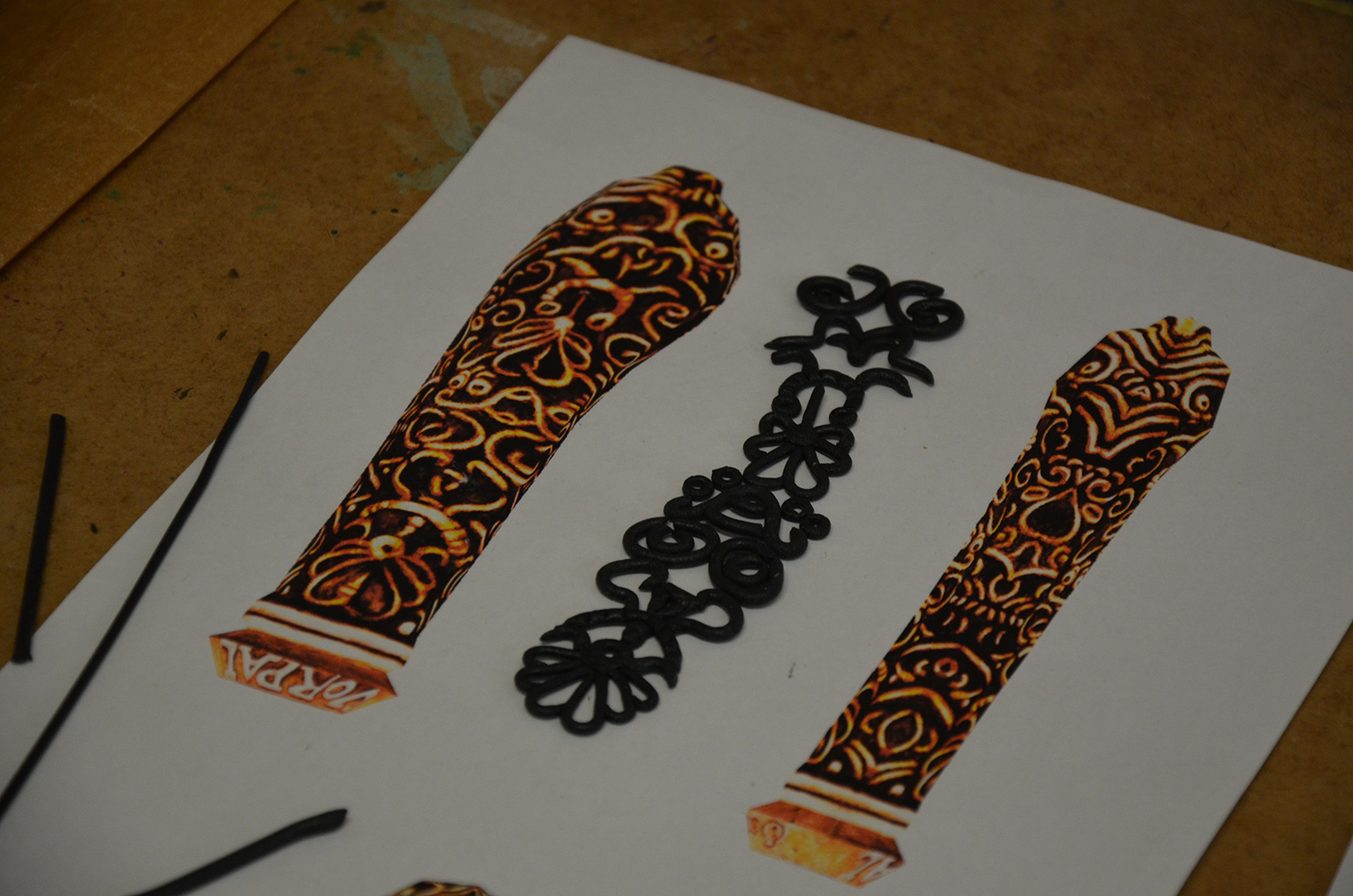

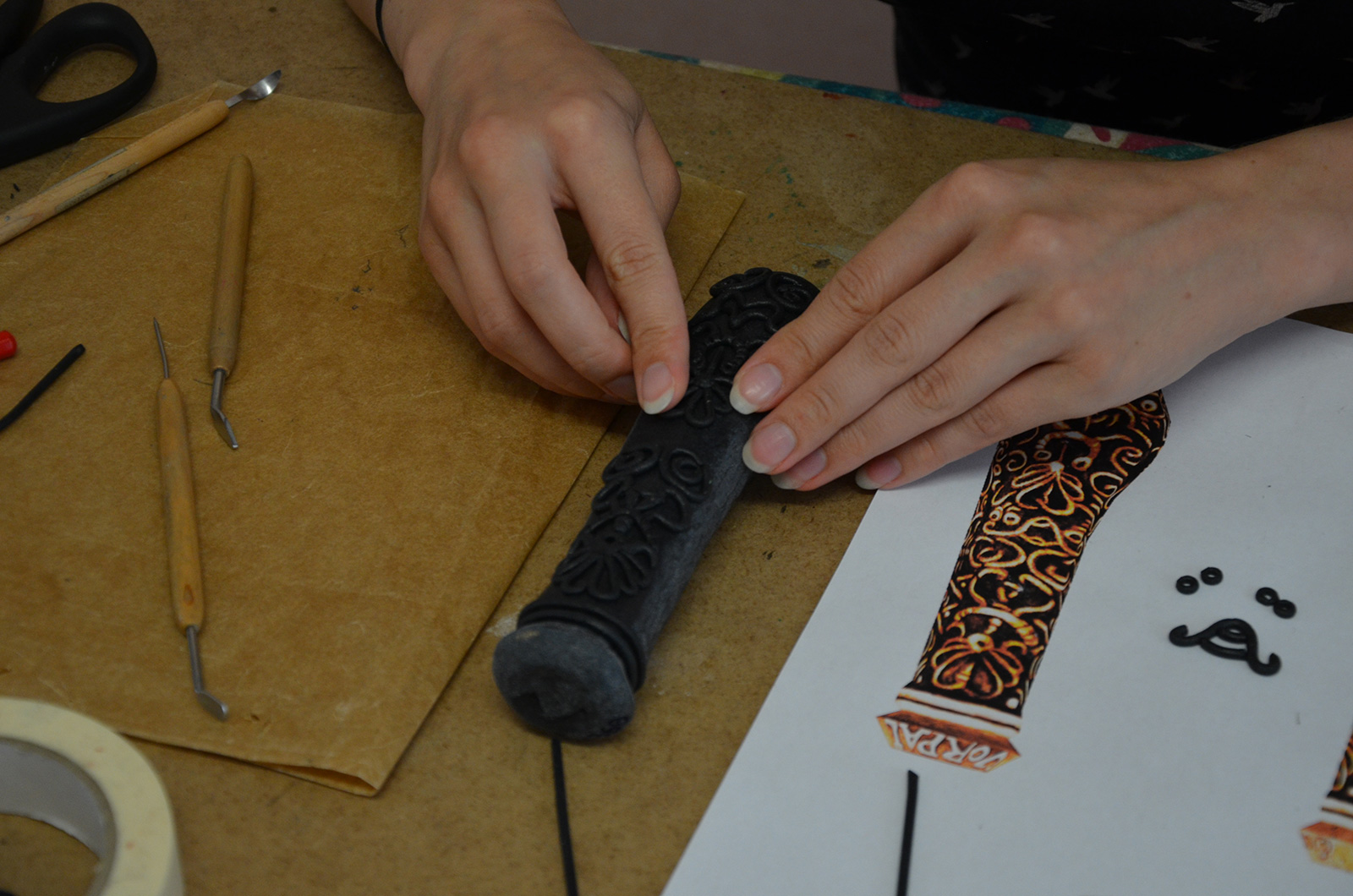

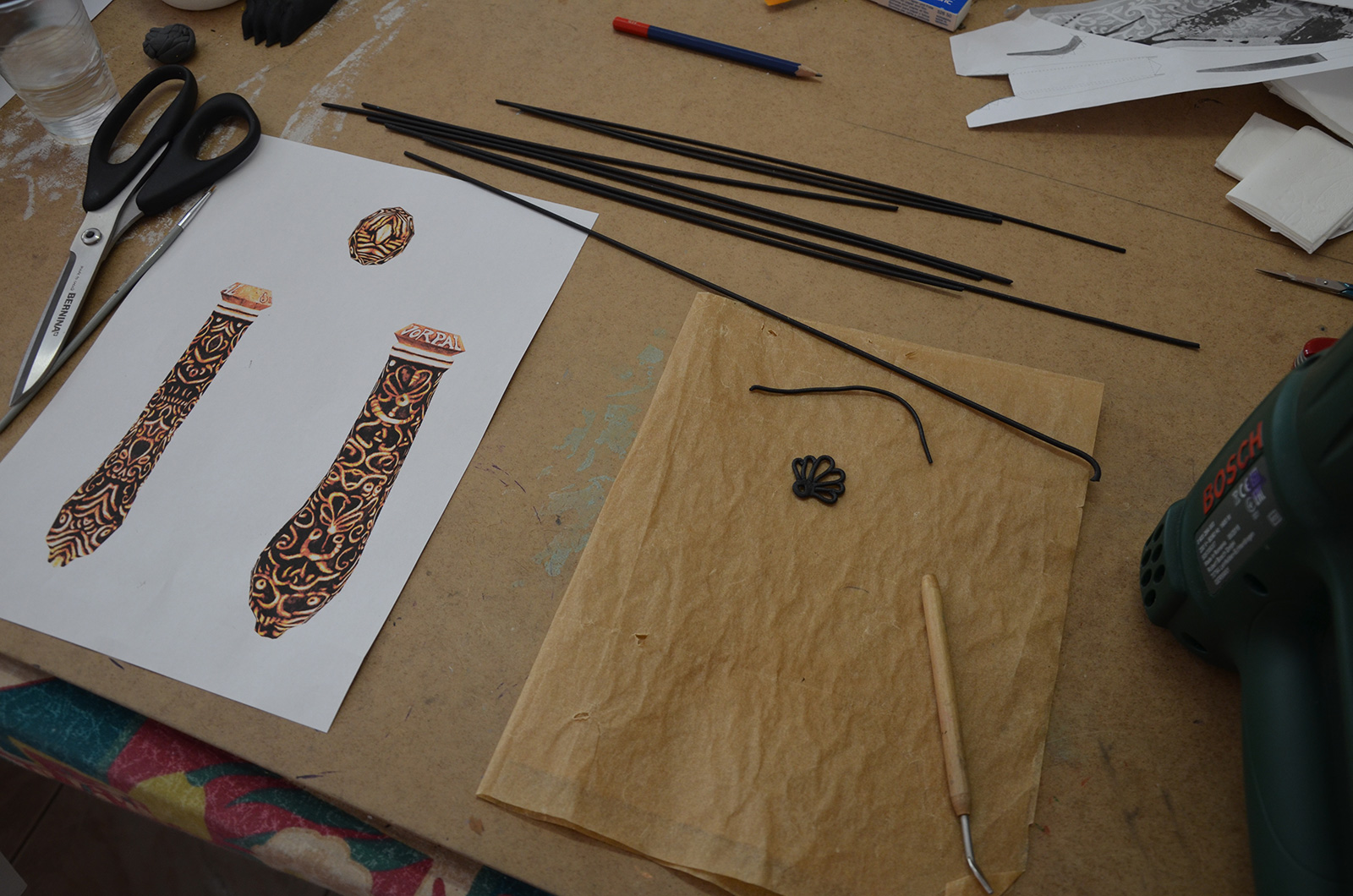

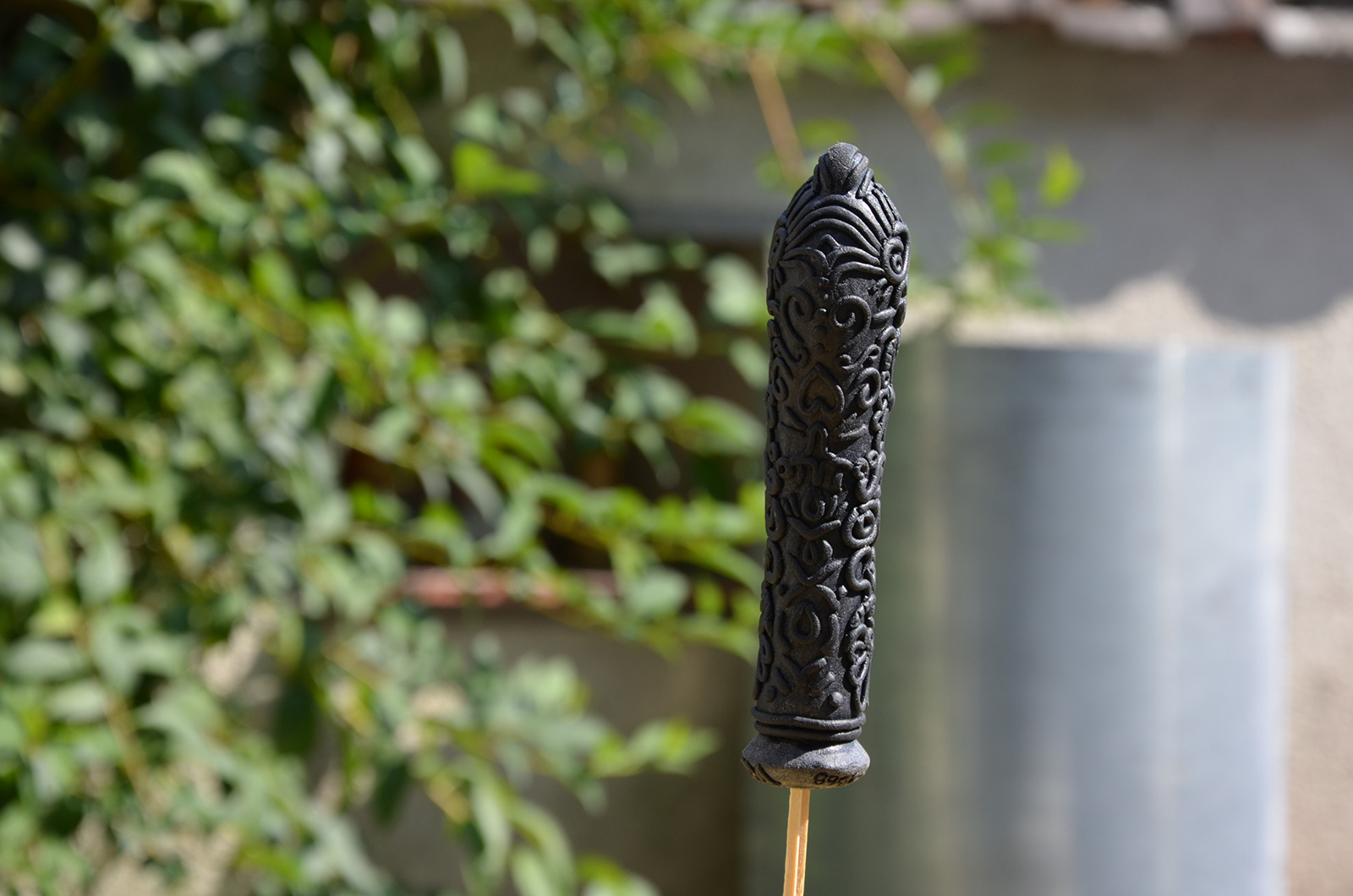

I first made some little Black Worbla sausages, and used them to create handle patterns. It’s the first time I’m working on so tiny Worbla details, and I’m really proud with how it turned out!

carved foam
worbla black rolls
worbla black details

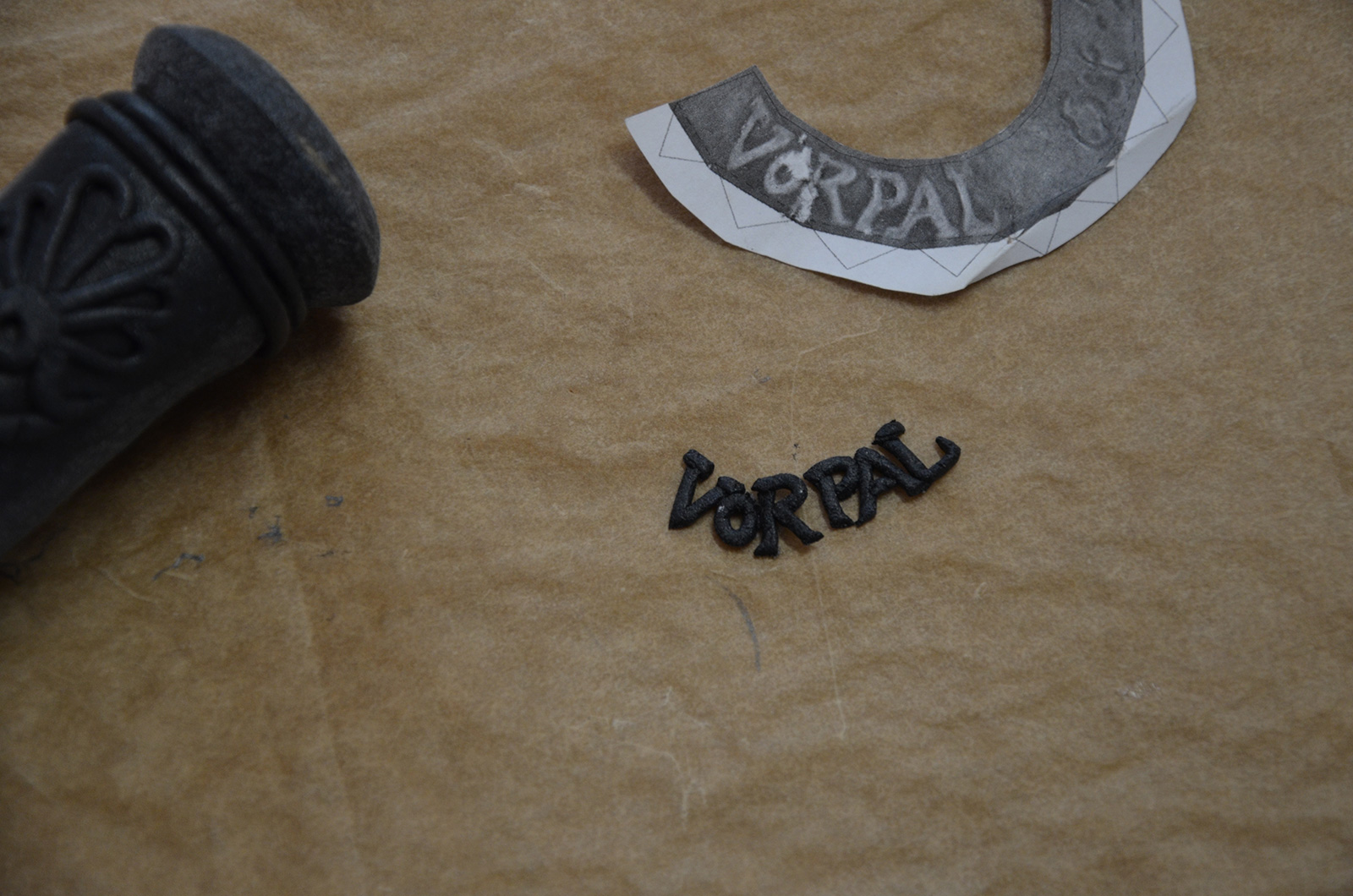

worbla black small details

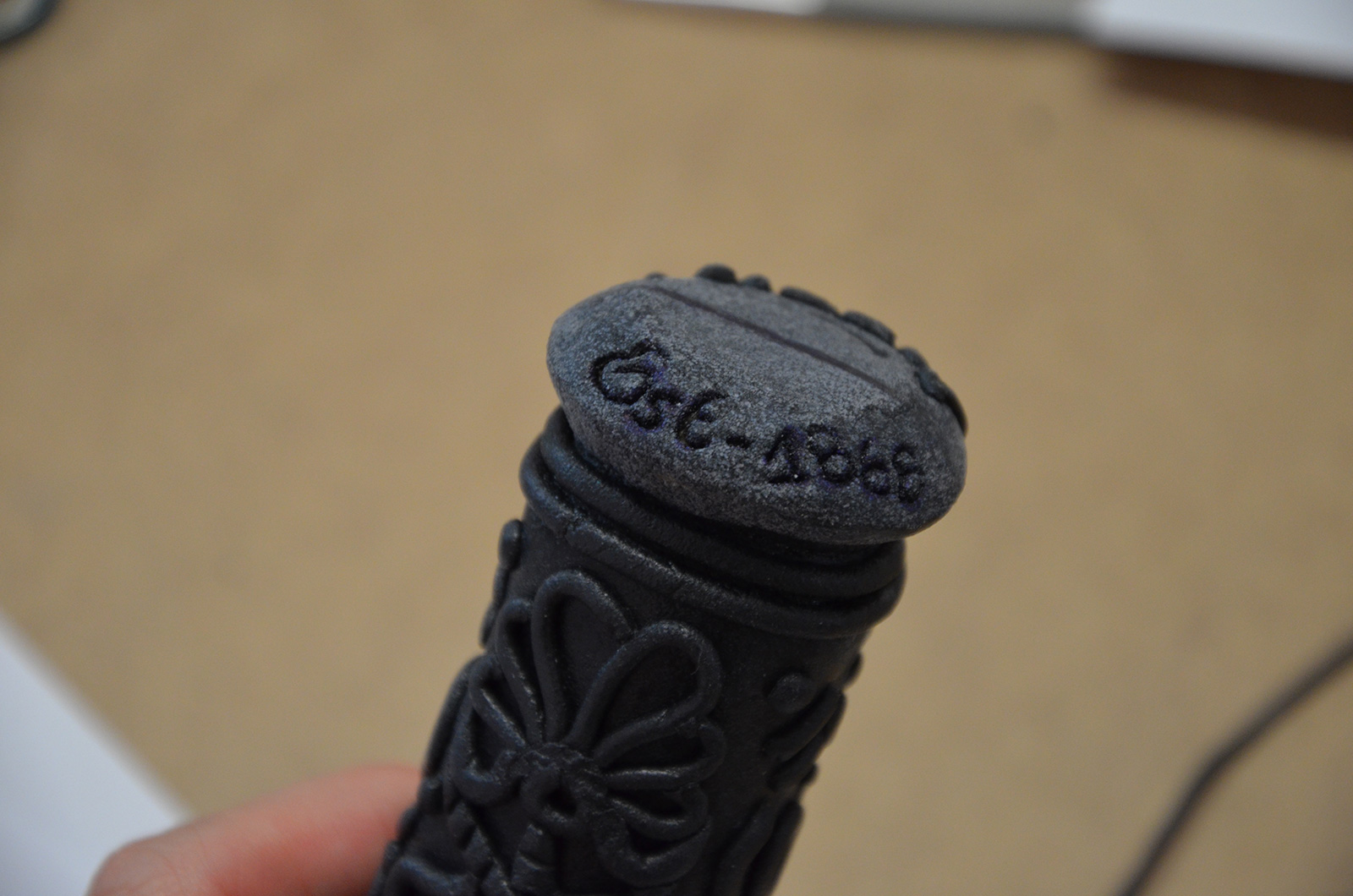

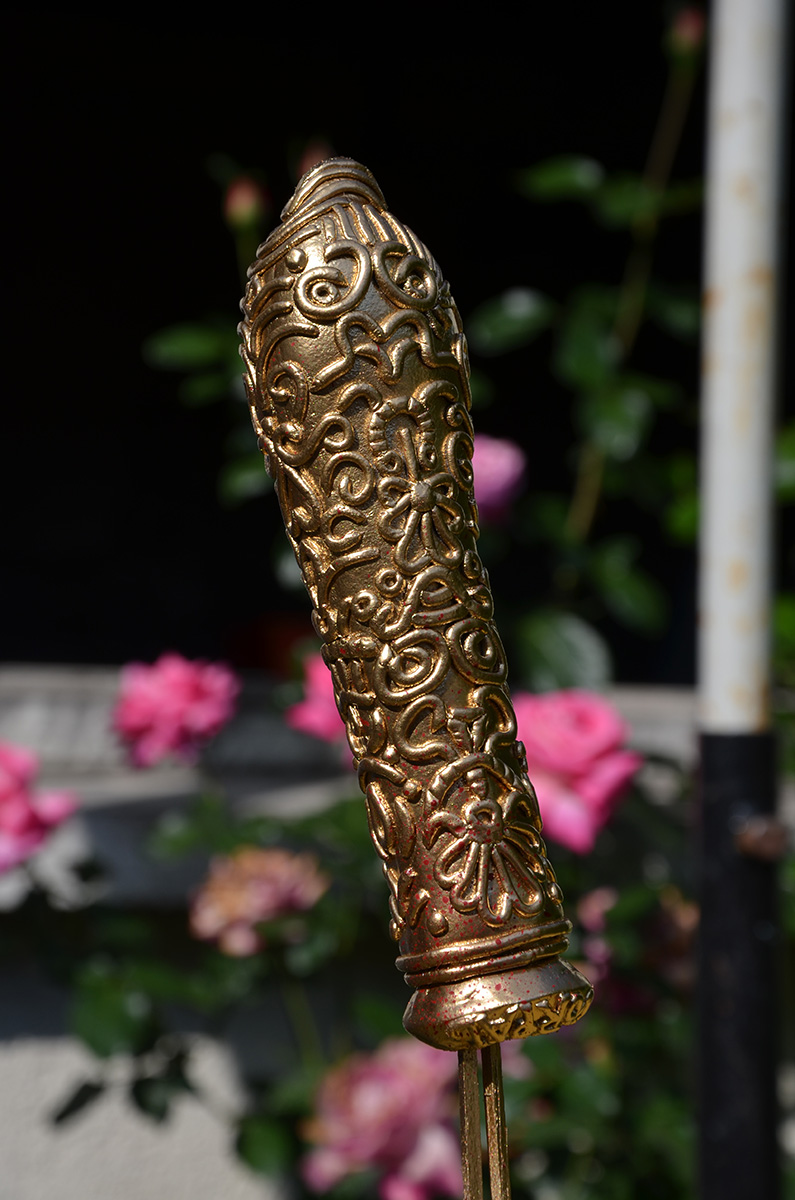

vorpal blade worbla black
worbla black carved
worbla black
worbla black

worbla black paint
So shiiiiiiny 🙂

«Bloody Mary»:

And here comes my favourite part!

BLOOOOOOOOOOD!!! 😀
Beware : if you’re doing this at home, be sure to cover the walls, furnitures, ground… and wear cloths you don’t fear to stain.

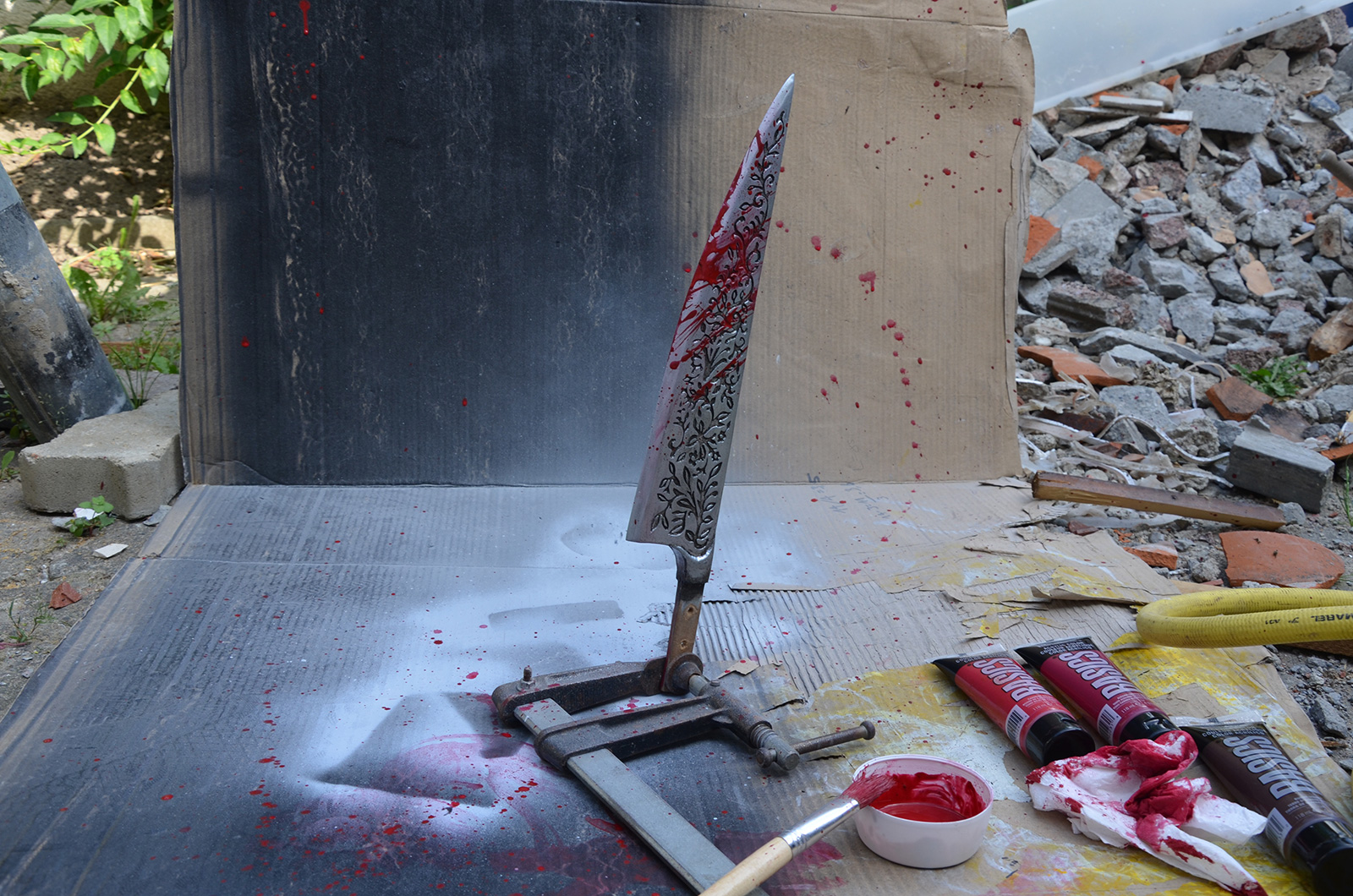

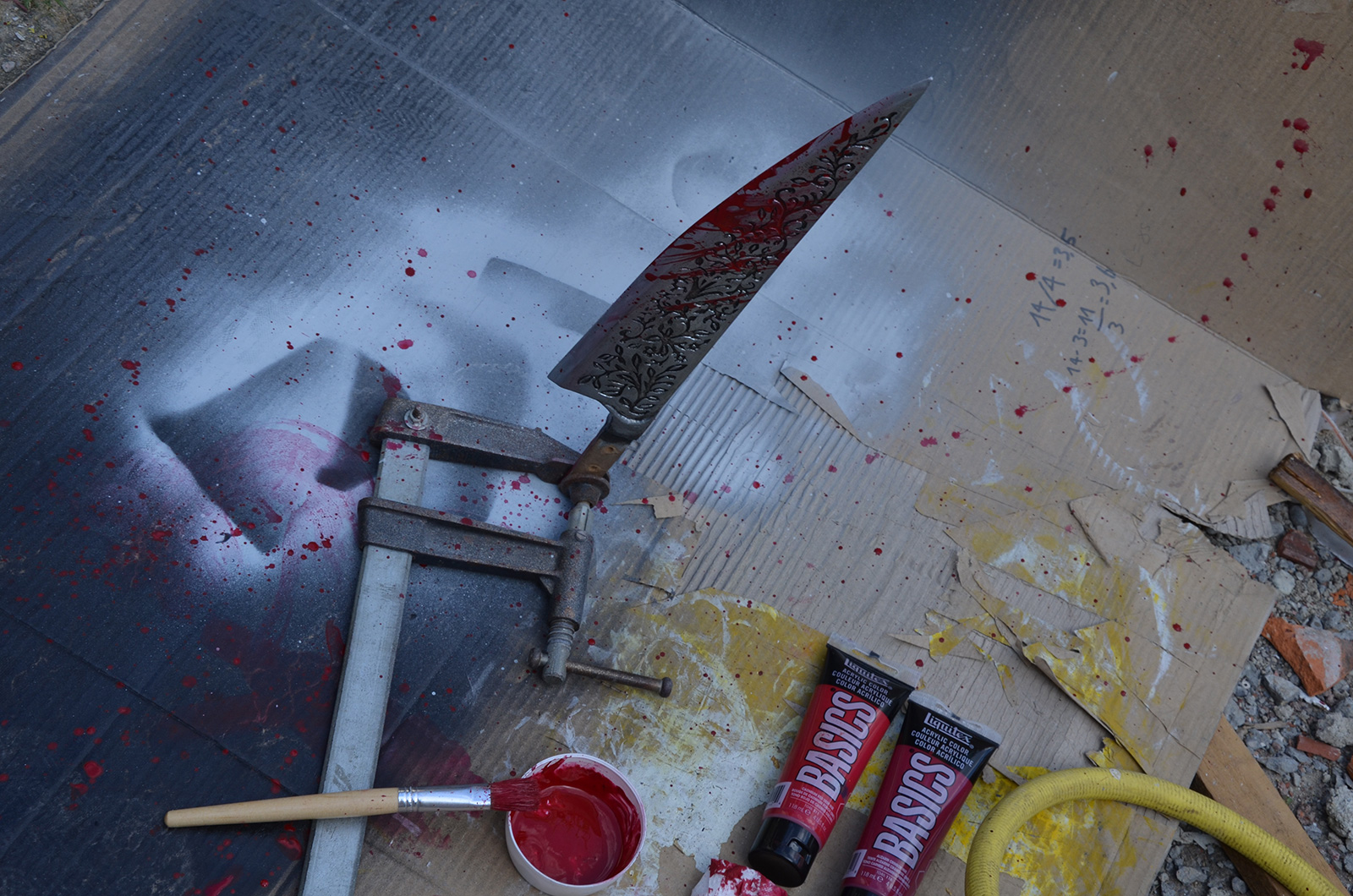

Take some red paint (I mixed Cadmium Red Deep Hue, Alizarin Crimson Hue and a bit of Burnt Umber), add some water to liquefy, take a brush and have fun!

Tip n°1: better test your «throw» before doing it on your final piece 😉
Top n°2: to create tiny droplets, pass the hair of your brush under your finger next to the piece you want to paint.

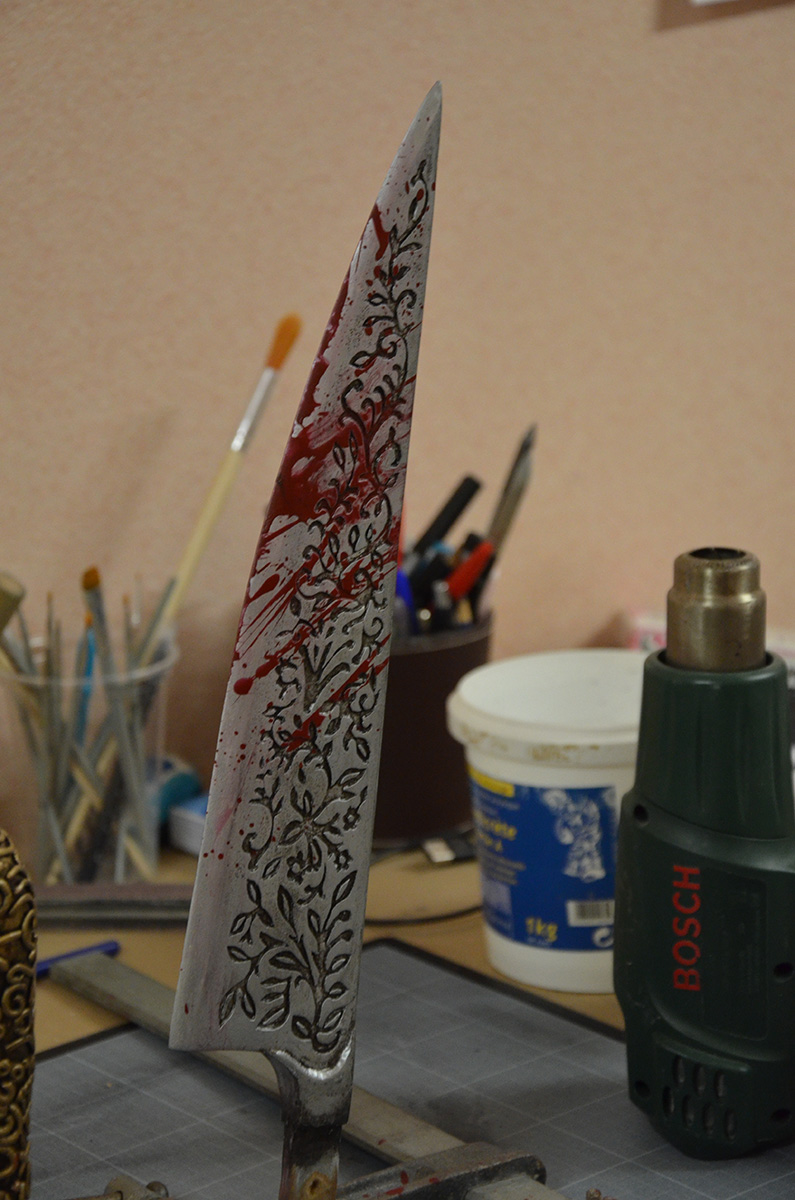

vorpal blade blood
blood paint

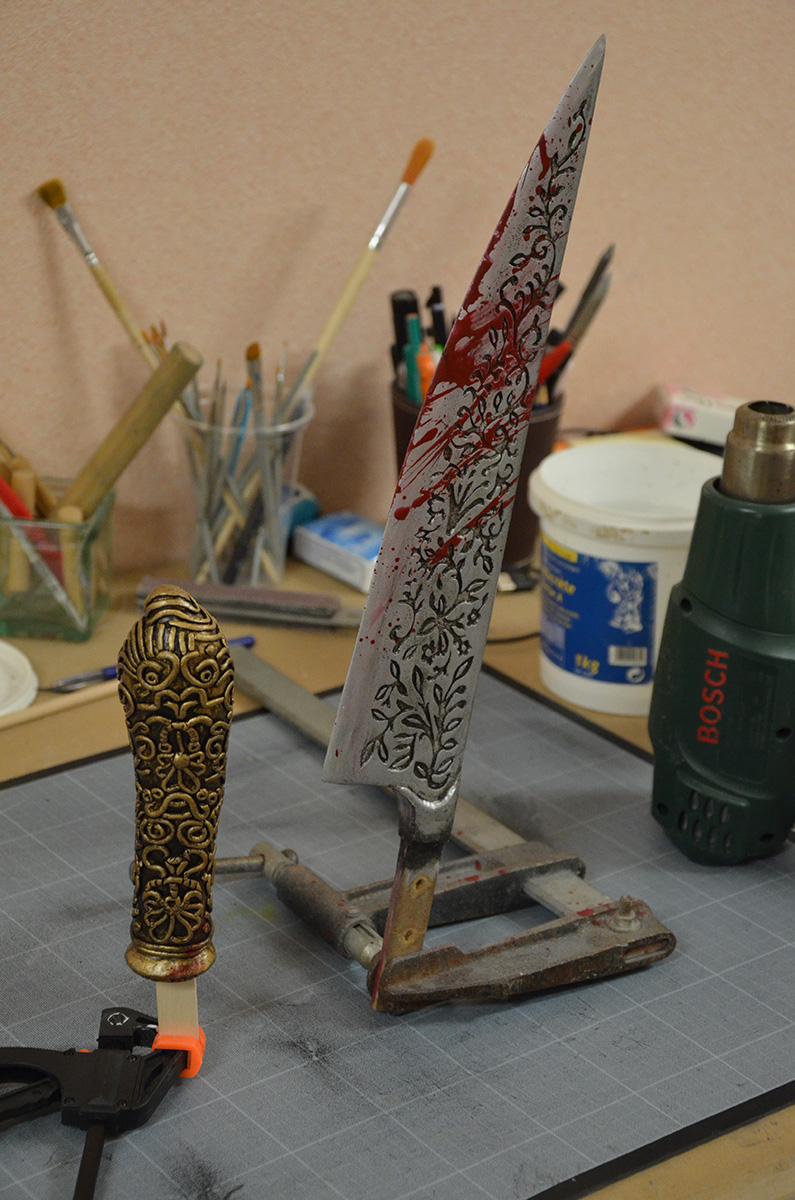

vorpal blade assembling
handle worbla
vorpal blade paint

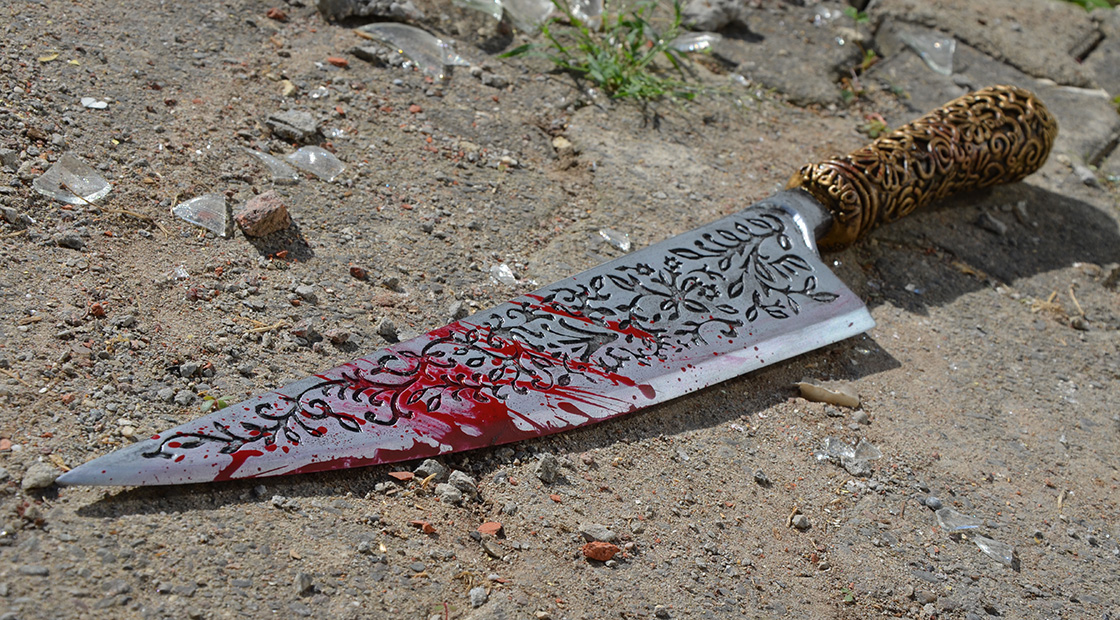

Final Vorpal Blade:

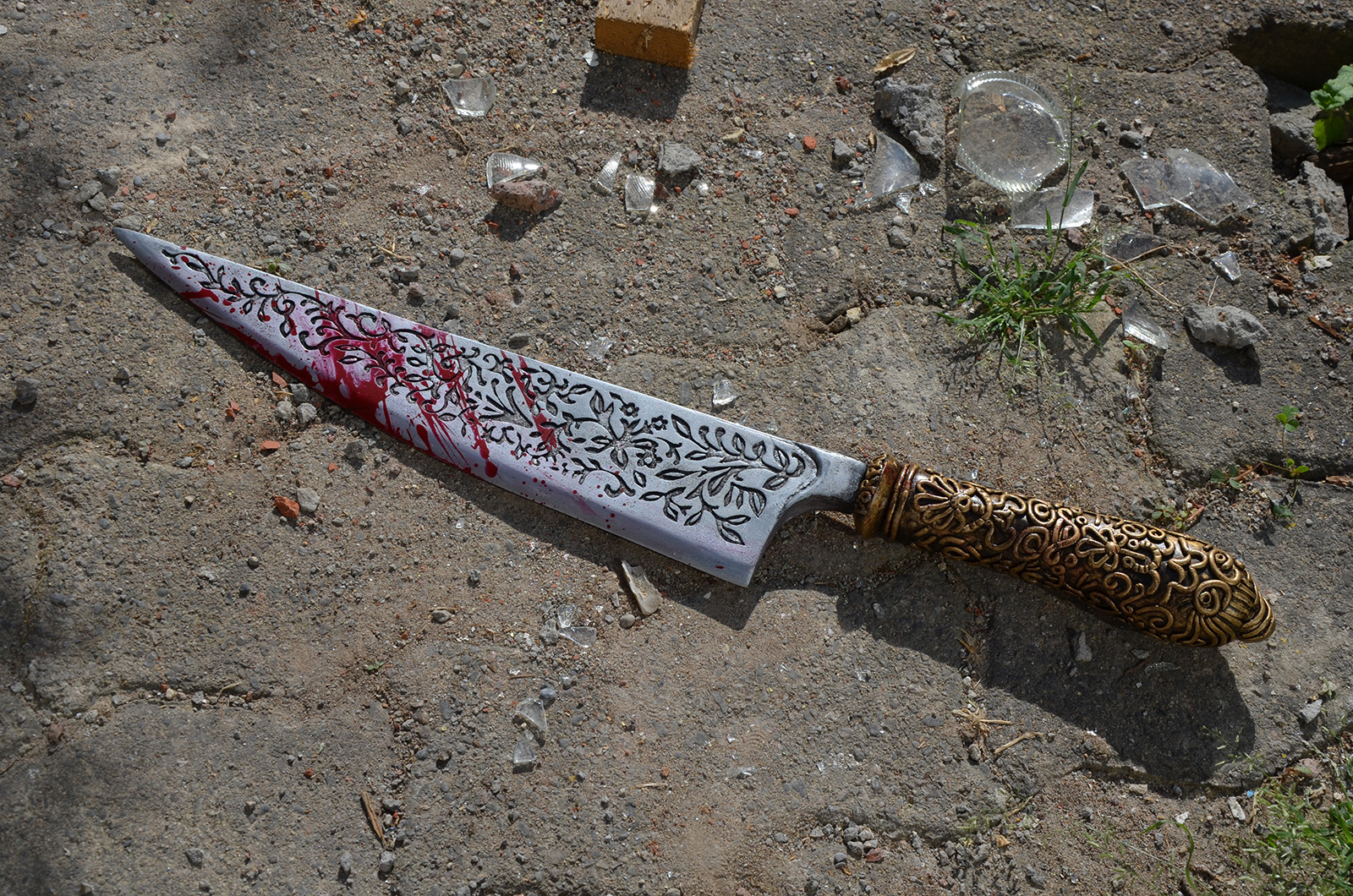

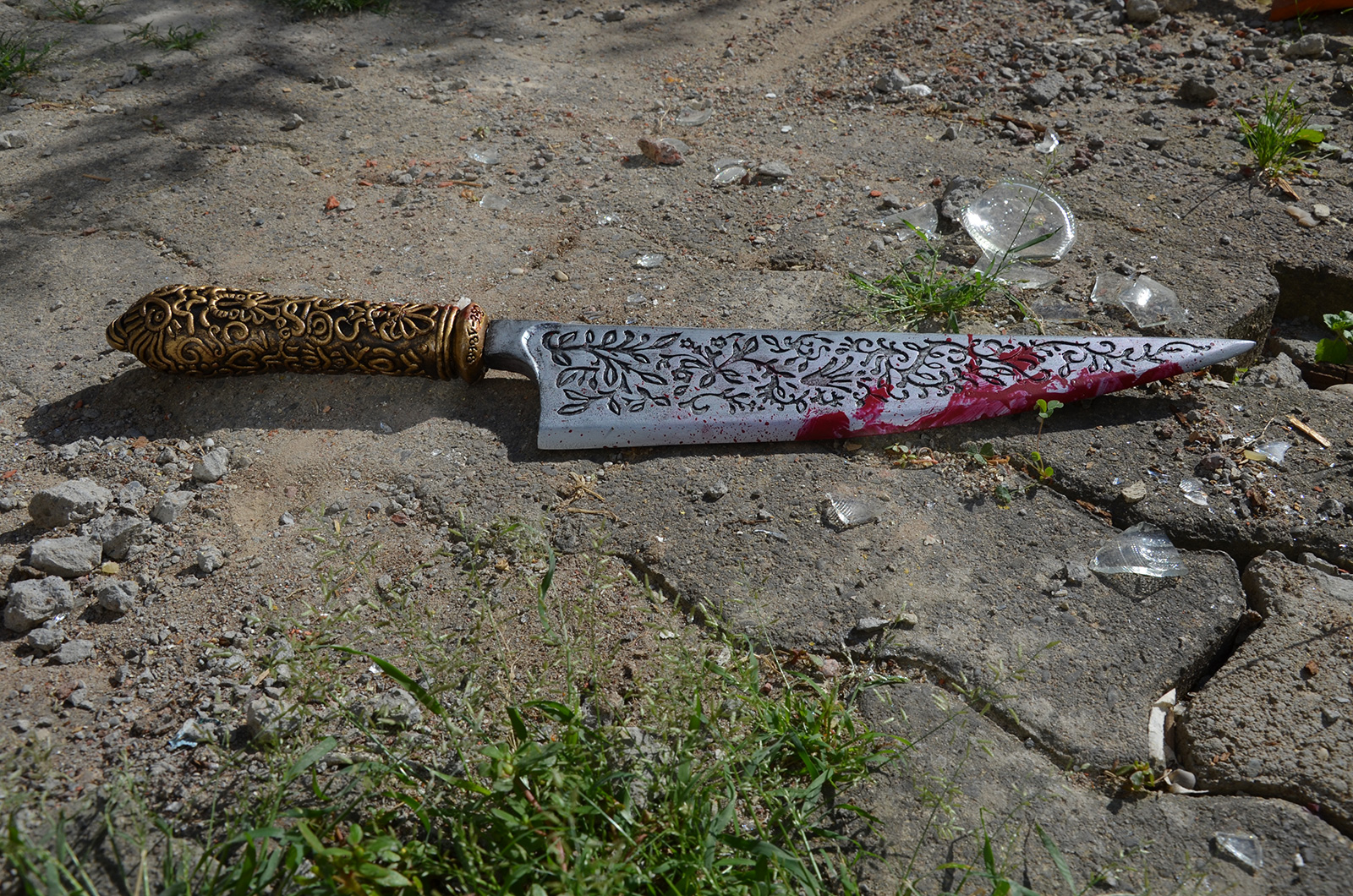

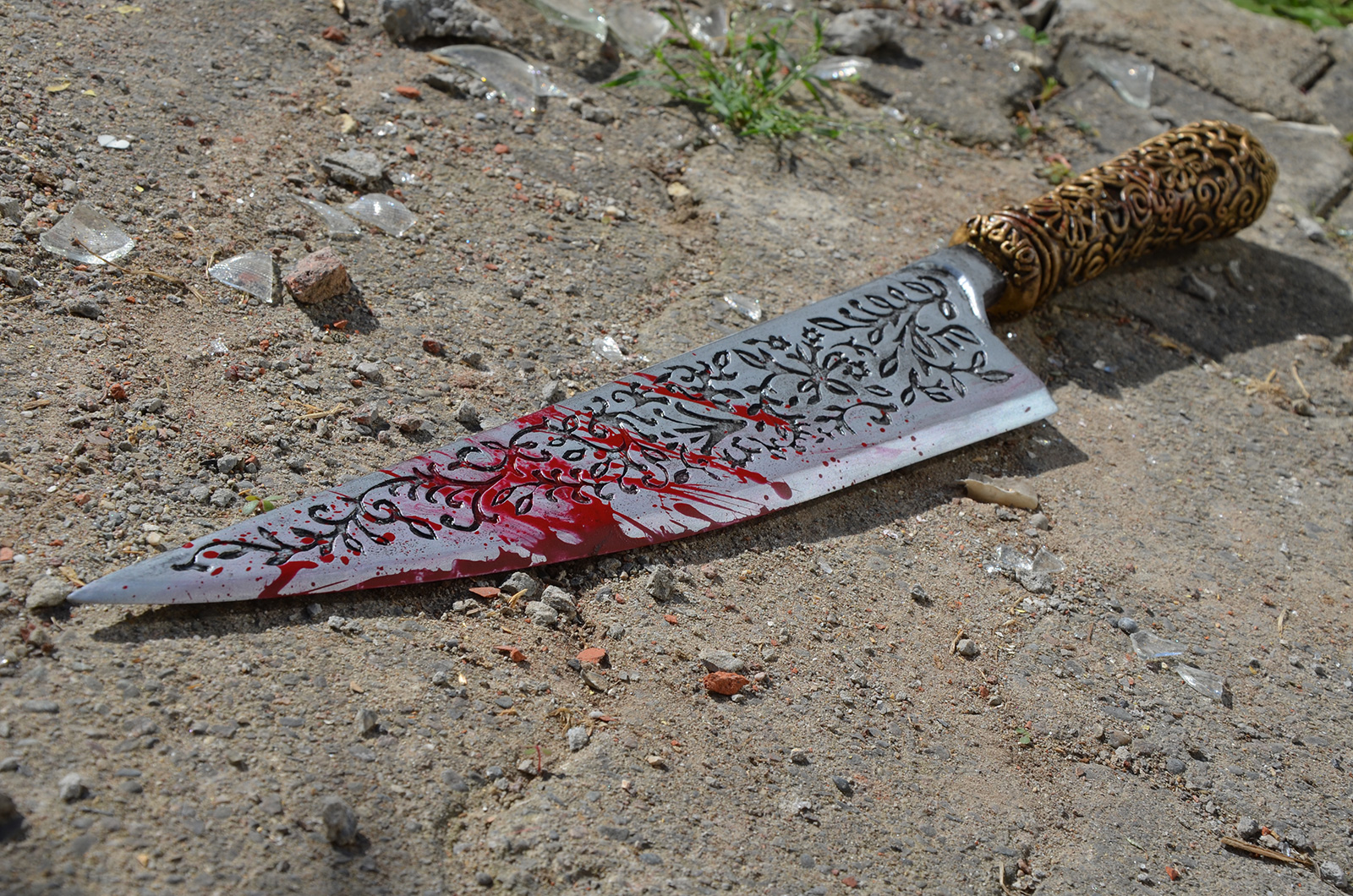

There you go, mission accomplished! A beautiful blade and a sculpted handle, all in Worbla, finished in less than 5 days. And as a bonus: this prop is super-light!

So, here are some pics of the finished Vorpal Blade.
Thanks for reading, hope you enjoyed this 😉
